885136

Overview

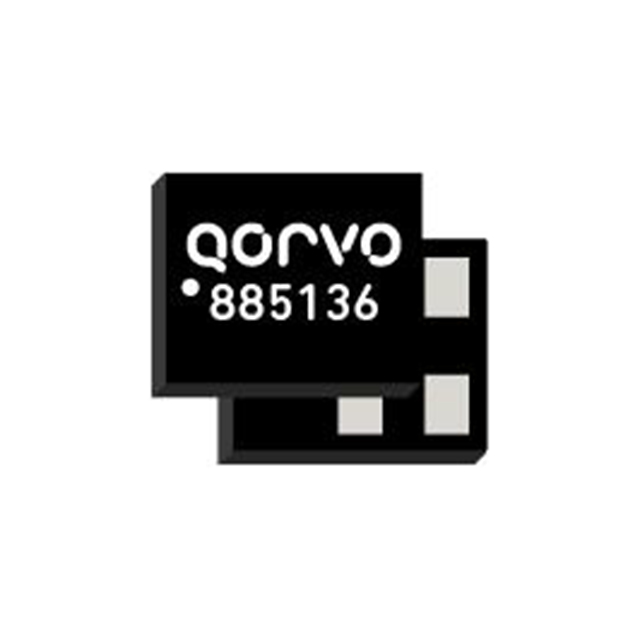

The Qorvo 885136 is a Bulk Acoustic Wave (BAW) band-pass filter designed for Wi-Fi applications. It operates at a center frequency of 2437 MHz with a bandwidth of 69 MHz. The device features low insertion loss and extremely steep skirts for superior selectivity. It supports high power handling capabilities and maintains performance across an operating temperature range of -40°C to +95°C. The component utilizes a 5-SMD, no-lead surface-mount package and is rated for 50 ohms impedance.

Feature Summary

• High-performance BAW technology providing low insertion loss
• Steep skirt characteristics for enhanced signal selectivity
• Designed for high power handling in RF systems

Applications

• Wi-Fi 802.11b/g/n/ac/ax systems
• RF front-end signal conditioning
• Wireless communication infrastructure

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Qorvo or authorized distributors before integration. Confirm that the 5-SMD package dimensions match your PCB footprint requirements. Ensure thermal management strategies align with the specified operating temperature range of -40°C to +95°C during system design validation.

Selection Notes

Select this component when designing Wi-Fi transceivers requiring robust rejection of adjacent channel interference. The BAW technology offers advantages over SAW filters in high-power scenarios. Consider the 69 MHz bandwidth relative to the specific Wi-Fi channel allocation needs. Verify compatibility with 50-ohm system impedance standards.

Part Context

Qorvo manufactures this filter as part of its portfolio of premium RF components. The company specializes in semiconductor solutions for mobile, infrastructure, and industrial markets. This specific model addresses the growing demand for efficient filtering in modern wireless protocols like Wi-Fi 6 and Wi-Fi 6E.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Qorvo technical support for direct replacements or cross-reference compatible BAW filters from other manufacturers based on electrical specifications.
