885136SR

Overview

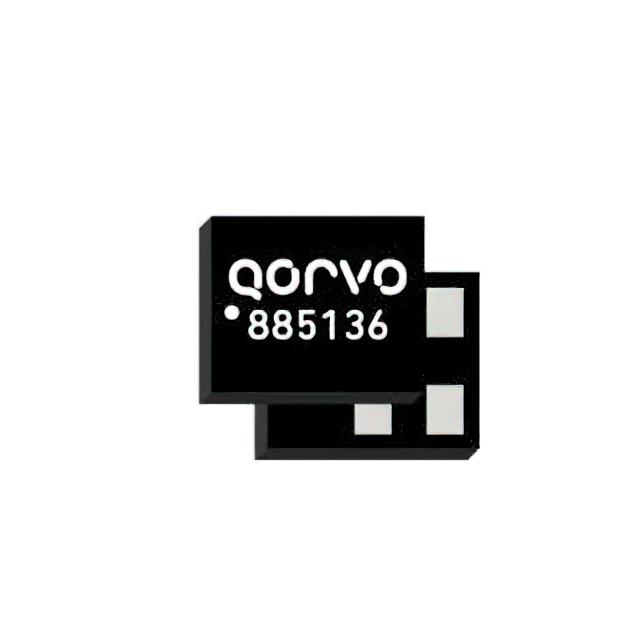

The Qorvo 885136SR is a Bulk Acoustic Wave (BAW) band-pass filter designed for signal conditioning applications. It operates at a center frequency of 2437 MHz with a bandwidth of 69 MHz. The component features low drift characteristics and supports an operating temperature range from -40°C to +95°C. It utilizes SMD/SMT termination types and is available in reel, cut tape, or MouseReel packaging formats.

Feature Summary

• High-performance BAW technology providing extremely steep filter skirts
• Low insertion loss design for efficient signal transmission
• Robust thermal stability across extended industrial temperature ranges

Applications

• Wireless LAN systems
• Bluetooth connectivity modules
• 2.4 GHz ISM band signal processing

Procurement Notes

Verify the specific suffix SR against official Qorvo documentation to confirm packaging configuration differences compared to standard variants. Ensure compatibility with existing PCB footprints and reflow profiles. Cross-reference datasheet revisions to validate electrical parameters before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring high selectivity and low loss in the 2.4 GHz spectrum. Consider the extended temperature range for robustness in varied environmental conditions. Evaluate the BAW technology benefits over competing filter types for superior performance in compact form factors.

Part Context

This part belongs to Qorvo's signal conditioning portfolio, specifically within their band-pass filter category. It leverages advanced BAW technology to address demands for high power handling and steep attenuation slopes in wireless communication infrastructure.

Replacement Considerations

Consult official Qorvo substitution guides for verified alternatives. Generic cross-references may not match the specific BAW characteristics or thermal ratings required for this application.
