Edgeboard Connectors Overview

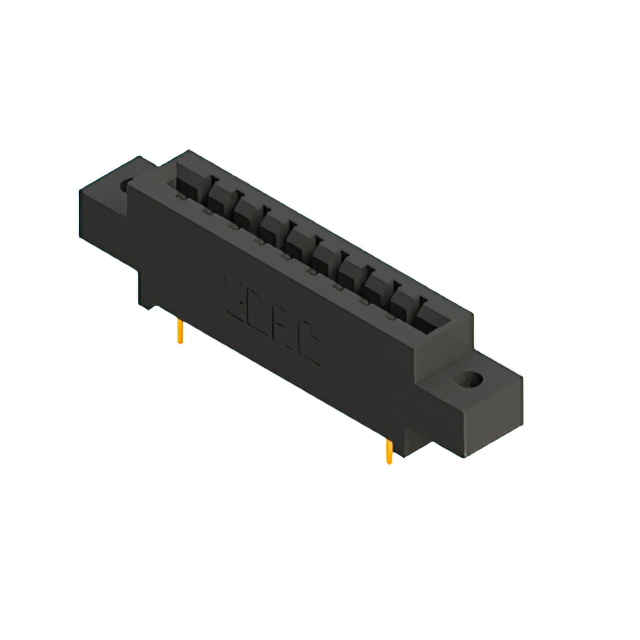

The EDAC Inc. 887-009-558-602 is a single-row female card edge connector with 9 positions and a 0.156-inch (3.96mm) contact spacing. Designed for panel mount installation, it features gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator body rated UL 94V-0. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It supports a maximum operating temperature of +125°C and includes offset mounting ears with Ø3.25mm through-holes.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing polyphenylene sulfide insulation
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount design with offset flanges for secure chassis integration

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Telecommunications equipment interfaces
• Medical device internal connections
• Energy sector instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC ordering guide to confirm terminal tail styles and mounting options. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance up to 125°C is mandatory. The PPS material offers superior thermal stability compared to standard thermoplastics. Verify that the 0.156-inch pitch aligns with the board layout requirements and that the panel mount configuration fits the enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 Series, which specializes in high-temperature card edge connectors. The series provides robust interconnect solutions for demanding environments where standard connectors may fail due to heat. The 887 line utilizes PPS insulation to maintain structural integrity under elevated thermal conditions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 887-009-558-603, 887-009-558-604, and 887-009-558-607. These alternatives share identical electrical and dimensional specifications but differ in mounting ear configurations and hole diameters. Cross-reference the mechanical drawing to ensure physical fitment.
