887-015-540-607

Edgeboard Connectors Overview

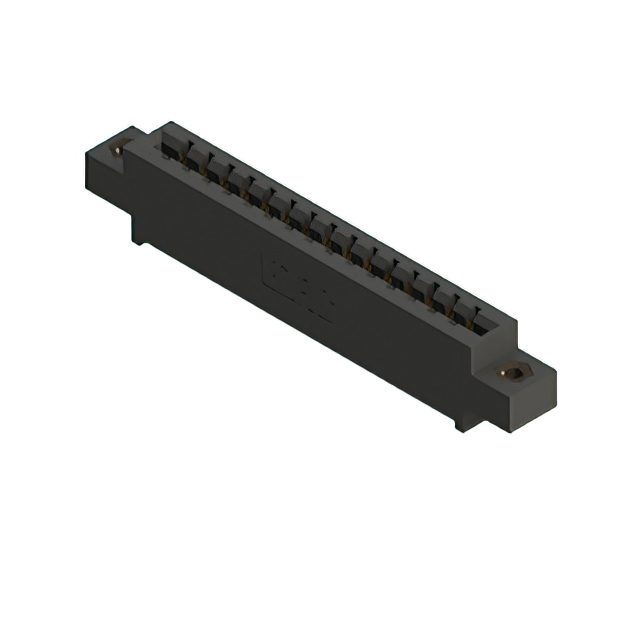

The EDAC Inc. 887-015-540-607 is a high-temperature card edge connector from the 887 series, designed for single-row applications with 15 positions. It features a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes copper alloy cantilever contacts with gold plating and employs wire wrap termination methods. Constructed with a Polyphenylene Sulfide (PPS) insulator body rated UL 94V-0, it supports an operating temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature PPS insulator body ensures stability in demanding thermal environments
• Cantilever contact design provides reliable mating force and low insertion resistance
• Wire wrap termination offers flexible assembly options without soldering requirements

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Telecommunications backplane interconnections
• Medical equipment internal module connections
• Energy sector instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific suffix matches the required termination style and mounting configuration. Confirm compliance with RoHS3 and REACH regulations as stated in official documentation. Ensure the selected variant aligns with the intended PCB thickness and row count specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance is critical, as indicated by the PPS material and extended operational range. Consider the wire wrap termination method if traditional soldering is unsuitable for the assembly process. Evaluate the single-row layout against available board space and pin density requirements for the specific application design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 series, which specializes in high-temperature card edge connectors. The series is characterized by its robust construction using Polyphenylene Sulfide insulators and versatile termination options including wire wrap and solder pins. It serves as a specialized solution for applications exceeding standard temperature limits found in general-purpose connector families.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing panel mount holes and guide rails when considering alternative models within the same series or different manufacturers.
