Edgeboard Connectors Overview

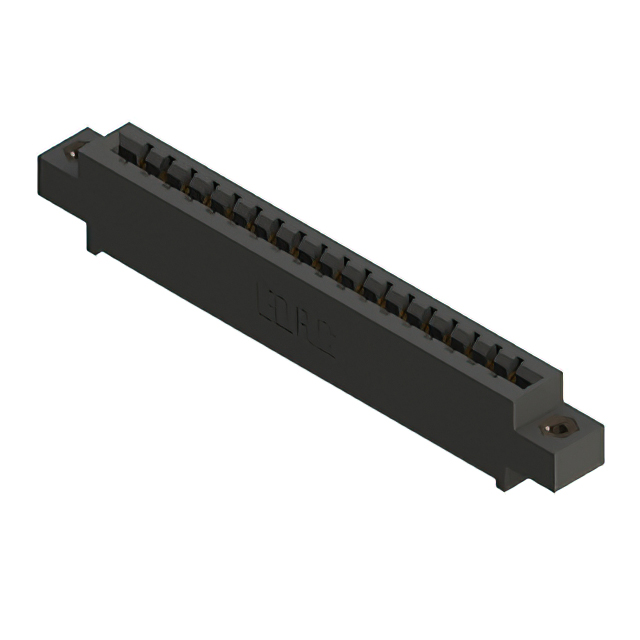

The EDAC Inc. 887-018-521-608 is a high-temperature card edge connector from the 887 Series, designed for single-edge board applications. It features 18 positions with female contacts and a 0.156" (3.96mm) pitch. The connector accepts printed circuit boards with a nominal thickness of 0.062" (1.57mm). Constructed with a black Polyphenylene Sulfide (PPS) insulator body and copper alloy contacts, it offers gold plating on the contact interface. The unit utilizes a solder pin termination method for vertical panel mounting.

Edgeboard Connectors Feature Summary

• High-temperature rated construction using Polyphenylene Sulfide (PPS) insulation material
• Single-row female contact configuration with gold-plated copper alloy terminals
• Vertical panel mount design with offset mounting ears for secure installation

Edgeboard Connectors Applications

• High-temperature electronic assemblies requiring robust card edge connections
• Panel-mounted systems utilizing 0.062 inch nominal thickness PCBs
• Industrial control units operating within extended thermal environments

Edgeboard Connectors Procurement Notes

Verify the specific tail style and mounting ear configuration against the official datasheet to ensure mechanical compatibility with the target chassis. Confirm that the required temperature rating aligns with the component's specified operational range. Cross-reference the ordering suffix to validate the exact termination type and flange characteristics before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, high-temperature card edge connector is required for vertical panel mounting. Ensure the application PCB thickness matches the 0.062" (1.57mm) nominal specification. Consider the PPS material properties for environmental resistance and verify that the 18-position count fits the signal routing requirements without exceeding available space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 Series, which specializes in high-temperature card edge connectors. The series is characterized by its use of PPS insulation and versatile mounting options, including offset ears and various tail styles. It serves as a reliable interconnect solution for demanding industrial and commercial applications where thermal stability and mechanical durability are critical performance factors.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 887 Series Ordering Guide for verified substitute part numbers. Ensure any replacement maintains the same 18-position count, 0.156" pitch, and compatible mounting configuration.
