887-023-541-612

Edgeboard Connectors Overview

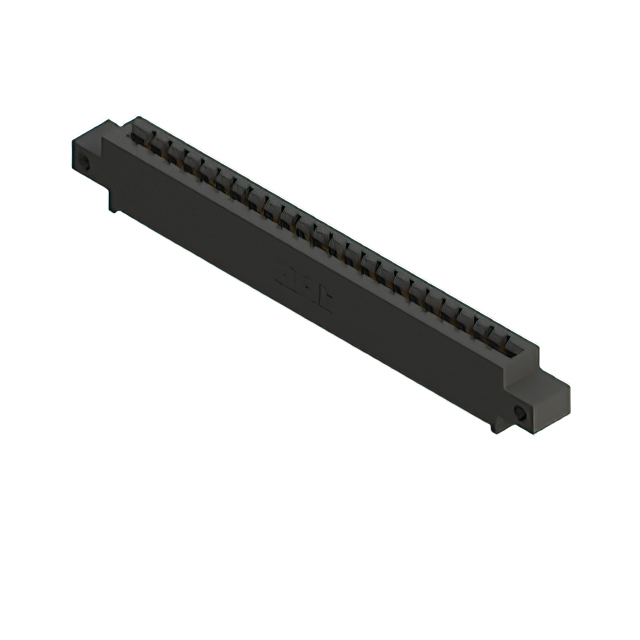

The EDAC Inc. part number 887-023-541-612 is a single-row female card edge connector designed for high-temperature applications. It features 23 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator housing. It supports a maximum operating temperature of +125°C and a minimum of -40°C, with a current rating of 3 A per contact.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction suitable for demanding environments
• Gold-plated contacts ensure reliable signal transmission
• Single row configuration for standard card edge insertion

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Telecommunications equipment interfaces
• Medical device circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB panel mounting requirements before procurement. Cross-reference the 23-position count with design constraints to prevent mechanical interference during assembly.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 23 contacts is required for high-temperature operation up to 125°C. The 0.156-inch pitch accommodates standard card edge widths. Consider the PPS housing material for its inherent thermal resistance and electrical insulation properties in dense electronic assemblies.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 887 series, which specializes in high-temperature card edge solutions. The series offers various position counts while maintaining consistent 0.156-inch spacing. It serves as a robust interconnect option for sectors prioritizing durability and thermal performance over standard commercial grade alternatives.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed for this specific 23-position variant. Evaluate other 887 series models with matching pin counts or consult EDAC engineering for custom equivalents if exact replacement is necessary.
