887-032-542-608

Edgeboard Connectors Overview

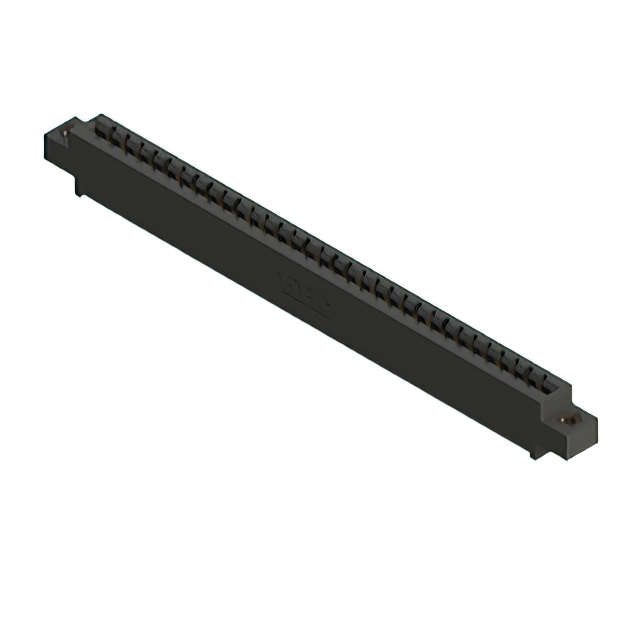

The EDAC Inc. 887-032-542-608 is a single-row, female card edge connector from the 887 series. It features 32 positions with a 0.156-inch (3.96mm) contact spacing. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a black PPS insulator rated UL 94V-0. The connector supports board thicknesses of 0.062 inches (1.57mm) and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature capability with a wide operating range from -40°C to +125°C
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Offset mounting ears provide secure mechanical stability on the PCB

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Telecommunications equipment interfaces
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific tail configuration and flange offset dimensions against the target PCB layout before ordering. Confirm that the required board thickness aligns with the 0.062-inch specification. Ensure compliance with RoHS3 and REACH regulations for the intended market. Cross-reference the full part number to confirm the exact contact termination style.

Edgeboard Connectors Selection Notes

Select this component when high-temperature performance and robust mechanical locking are required. The 887 series offers various tail styles; verify that the standard tail matches the assembly process. Consider the offset flange design for improved board retention compared to flush options. Ensure the 32-position count fits the circuit density requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 887 series, designed for demanding environments. The series provides high plastic height and deep slot depth for enhanced durability. It supports both single and double row configurations with multiple installation options including threaded and rivet mounts.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 887 series variants with matching pin counts and spacing. Verify compatibility regarding tail length and flange offset dimensions. Generic replacements may not match the specific high-temperature rating or UL certification.
