Edgeboard Connectors Overview

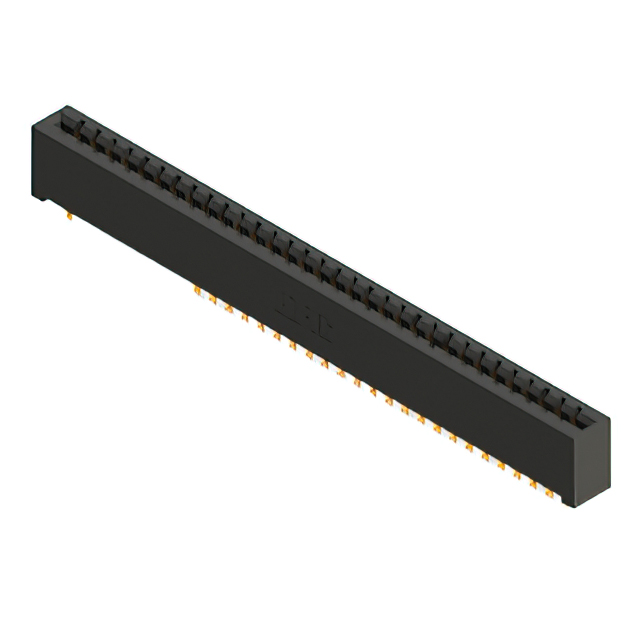

The EDAC Inc. 887-064-555-201 is a dual-edge female card edge connector featuring 64 positions with a 3.96mm contact spacing and 5.08mm row spacing. Designed for .062 inch nominal thickness PCBs, it utilizes gold-plated copper alloy contacts housed in a black polyphenylene sulfide (PPS) insulator body rated UL 94V-0. The component supports a maximum operating temperature of +125°C and a minimum of -40°C, ensuring reliable performance in high-temperature environments.

Edgeboard Connectors Feature Summary

• High-temperature resistant PPS insulator body for enhanced thermal stability
• Gold-plated copper alloy contacts for superior conductivity and corrosion resistance
• Dual-edge configuration accommodating standard .062 inch PCB thickness
• Flexible mounting options including panel mount capabilities

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Communication equipment interfaces
• Medical device internal connections
• Energy sector electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting hardware configurations. Ensure compatibility with the target PCB stack-up and mating card dimensions before procurement. Cross-reference RoHS compliance status with current manufacturer declarations to meet regional regulatory requirements.

Edgeboard Connectors Selection Notes

Select this model when dual-sided connectivity is required alongside high thermal endurance. The 3.96mm pitch offers robust signal routing for industrial applications. Consider the high-profile insulator design for adequate clearance and mechanical stability in dense panel layouts compared to low-profile alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 887 series, specialized as a high-temperature card edge connector line. The series provides various position counts and termination styles, sharing common electrical ratings and material specifications. It serves as a rugged interconnection solution within the broader EDAC portfolio for demanding environmental conditions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants like 887-064-544-803 or 887-064-558-604, depending on required termination type and mounting features. Verify pin count and pitch consistency to ensure mechanical fit.
