887-080-523-812

Edgeboard Connectors Overview

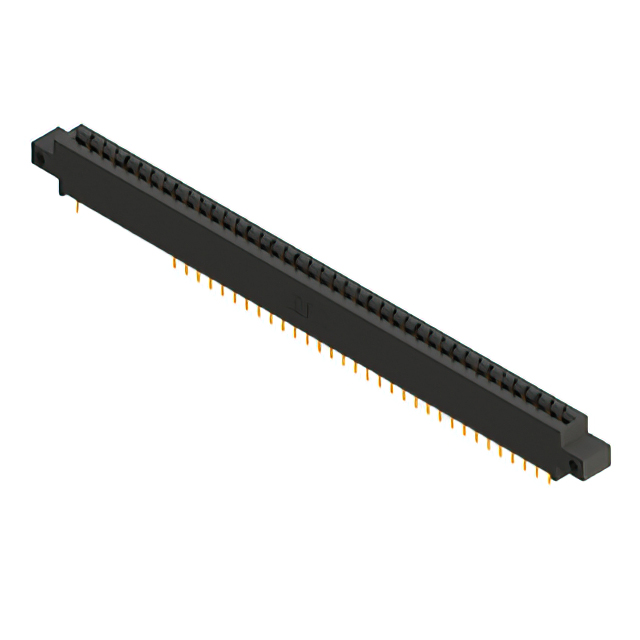

The EDAC 887-080-523-812 is a standard card edge connector receptacle designed for high-temperature applications. It features 80 positions in a dual-row configuration with a 3.96 mm (0.156 inch) pitch and a 5.08 mm row spacing. The connector utilizes gold-plated copper alloy contacts housed in a black polyphenylene sulfide (PPS) insulator rated UL 94V-0. It supports a maximum operating temperature of +125°C and a minimum of -40°C, with a rated current of 3 A per contact.

Edgeboard Connectors Feature Summary

• High-temperature PPS insulation material for reliable performance in harsh environments
• Gold-plated copper alloy contacts ensuring low contact resistance and durability
• Dual-edge female design accommodating standard PCB thicknesses
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Medical interconnect solutions requiring high reliability
• Agricultural technology equipment exposed to harsh conditions
• Industrial control systems utilizing card edge modules
• Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official documentation to confirm exact termination type and mounting flange options. Ensure the ordering part number matches the required position count and row configuration. Cross-reference the datasheet for precise dimensional tolerances and mating force specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 80 positions is required. The 3.96 mm pitch accommodates standard board layouts. Verify that the application environment stays within the -40°C to +125°C operational range. Confirm panel mount requirements align with the vertical installation style and available mounting hole patterns specified in the mechanical drawings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 887 series, which specializes in high-temperature card edge connectors. The series offers various termination styles including solder pin, wire wrap, and clip types. It is engineered for durability in demanding sectors such as medical and agricultural technology, providing robust connectivity solutions with standardized dimensions and materials.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 887 series selection guide for direct substitutes. Alternative part numbers may vary by termination style, mounting flange configuration, or row count. Ensure any replacement maintains the 3.96 mm pitch and compatible PCB thickness specifications.
