Product Detailed Parameters
- Description：FIXED IND 680UH 74MA 20 OHM SMD
- Series：D32FU
- Mfr：Toko America Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：-
- Inductance：680 µH
- Tolerance：±20%
- Current Rating (Amps)：74 mA
- Current - Saturation (Isat)：74mA
- Shielding：Unshielded
- DC Resistance (DCR)：20Ohm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.138" L x 0.138" W (3.50mm x 3.50mm)
- Height - Seated (Max)：0.087" (2.20mm)
- Features：-
Download product information
Overview

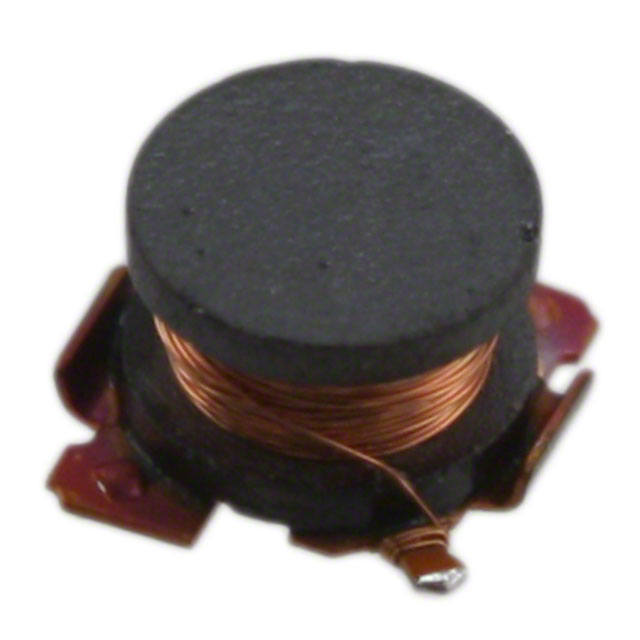

The 887FU-681M=P3 is a fixed wirewound inductor manufactured by Toko America Inc. designed for surface-mount applications. It features a low profile with a typical height of 1.5mm and a 3.3mm square footprint. The component provides an inductance of 680µH, a maximum DC resistance of 13 ohms, and a rated current of 115mA. It is suitable for IC inverter EL lamp driver applications and is available on tape and reel for automated assembly.
Feature Summary
- Low profile construction with a typical height of 1.5mm
- Compact 3.3mm square footprint design
- Optimized for IC inverter EL lamp driver applications
Applications
- IC inverter EL lamp driver circuits
- Surface-mount electronic assemblies requiring compact inductors
- Automated pick-and-place manufacturing processes
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required packaging formats. Confirm that the standard surface-mount package dimensions align with the target PCB layout constraints. Check the manufacturer's latest documentation for any updates regarding RoHS compliance or material declarations prior to finalizing procurement orders.
Selection Notes
Select this component when space constraints require a low-profile inductor with a 3.3mm square footprint. Ensure the circuit design accommodates the 13-ohm DC resistance and 115mA current rating. Consider the 680µH inductance value relative to the target frequency range for optimal performance in EL lamp driver applications.
Part Context
This part belongs to the 887FU series of fixed inductors from Toko America Inc., which are characterized by their small size and suitability for high-density surface-mount designs. The series is engineered for reliability in consumer electronics and lighting applications where compact form factors are critical.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify cross-references through official distributor channels if alternative sourcing is required.
FAQ
What is the typical height of the 887FU-681M=P3?
The typical height is 1.5mm.
Is the 887FU-681M=P3 available in bulk packaging?
It is available on tape and reel for automated assembly.
