Product Detailed Parameters
- Description：FIXED IND 820UH 63MA 30 OHM SMD
- Series：D32FU
- Mfr：Toko America Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：-
- Inductance：820 µH
- Tolerance：±20%
- Current Rating (Amps)：63 mA
- Current - Saturation (Isat)：71mA
- Shielding：Unshielded
- DC Resistance (DCR)：30Ohm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.138" L x 0.138" W (3.50mm x 3.50mm)
- Height - Seated (Max)：0.087" (2.20mm)
- Features：-
Download product information
Overview

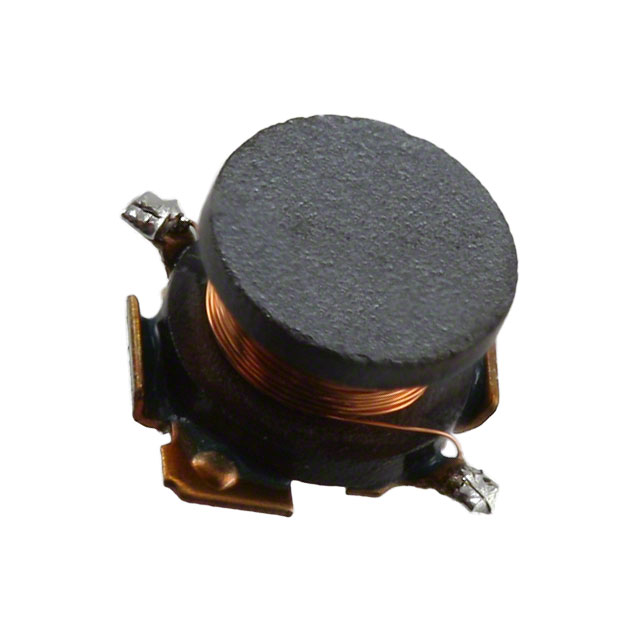

The 887FU-821M=P3 is a surface-mount fixed inductor manufactured by Toko America Inc. This component features an inductance of 820 µH with a tolerance of ±20%. It has a maximum DC resistance of 30 Ohms and a rated current of 63 mA. The part number suffix =P3 indicates tape and reel packaging for automated assembly.
Feature Summary
- Surface-mount design for automated PCB assembly
- Fixed inductance value for circuit filtering
- Tape and reel packaging configuration
Applications
- Electronic signal filtering circuits
- Power supply noise suppression
- General-purpose electronic component integration
Procurement Notes
Verify the exact electrical parameters against the official datasheet before procurement. Confirm that the =P3 suffix corresponds to the required tape and reel packaging format for your manufacturing line. Ensure compatibility with standard surface-mount reflow soldering processes.
Selection Notes
Select this component based on the specific requirement for 820 µH inductance and 63 mA current rating. Consider the physical footprint and thermal characteristics suitable for the target application environment. Verify that the 30 Ohm DC resistance meets the circuit's power loss constraints.
Part Context
This component belongs to the series of fixed inductors produced by Toko America Inc., a manufacturer specializing in passive electronic components. The company focuses on providing inductors, transformers, and filters for various industrial and consumer electronics applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official distributor databases or manufacturer catalogs for cross-reference information if replacement is necessary.
