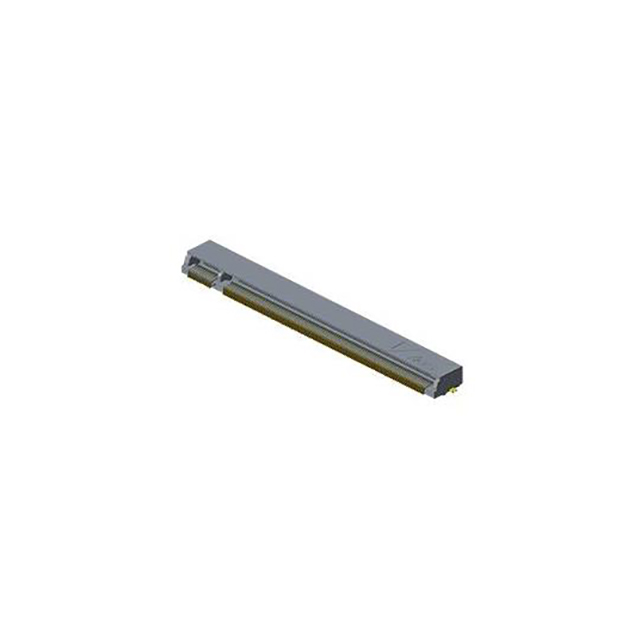

88990-2D08 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Aces Connectors. Its product description is 0.5MM MXM CONN. SMT D/R R/A H=4.. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 88990-2D08
- Description：0.5MM MXM CONN. SMT D/R R/A H=4.
- Series：-
- Mfr：Aces Connectors
- Package：Cut Tape (CT)
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：12; 103
- Number of Positions：230
- Card Thickness：0.047" (1.20mm)
- Number of Rows：2
- Pitch：0.020" (0.50mm)
- Read Out：Dual
- Features：Board Guide, Solder Retention
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：3.00µin (0.076µm)
- Contact Type：-
- Color：Gray
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 88990-2D08
Edgeboard Connectors Overview
The Aces Connectors 88990-2D08 is a surface-mount, right-angle female connector designed for dual-edge card applications. It features 230 positions arranged in two rows with a 0.50mm pitch. The contacts are gold-plated copper alloy with a 3.00µin thickness. Constructed with natural thermoplastic insulation, it supports board guide and solder retention features. Operating temperature ranges from -55°C to 85°C.
Edgeboard Connectors Feature Summary
- Dual-edge female connector configuration for secure mating
- Integrated board guide and solder retention mechanisms
- Gold-plated contact finish for reliable conductivity
Edgeboard Connectors Applications
- MXM module interconnects
- High-density electronic assemblies
- Consumer product internal connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix (e.g., 2D08) against official datasheets to confirm pinout and mechanical dimensions. Ensure compatibility with dual-edge card specifications and required operating temperatures. Confirm RoHS3 compliance status if environmental regulations apply to the final assembly.
Edgeboard Connectors Selection Notes
Select this component for applications requiring high-density dual-edge connections with right-angle termination. Consider the 0.50mm pitch and 230-position count for space-constrained designs. Verify that the thermoplastic insulation and gold contact finish meet the electrical and environmental requirements of the target system.
Edgeboard Connectors Part Context
This part belongs to the MXM connector series by Aces Connectors, specialized for consumer electronics like notebooks and digital cameras. The manufacturer utilizes dedicated electroplating facilities to ensure consistent contact quality. These connectors are engineered for reliability in compact mobile and computing devices.
Edgeboard Connectors Replacement Considerations
Cross-reference tools may identify parametrically similar parts. Verify exact position counts, pitch, and mounting orientation before substitution. Ensure substitute components match the dual-edge card thickness and height requirements.
Explore related parts through Connectors, Interconnects, all product categories, ChipApex homepage.
