892-011-541-112

Edgeboard Connectors Overview

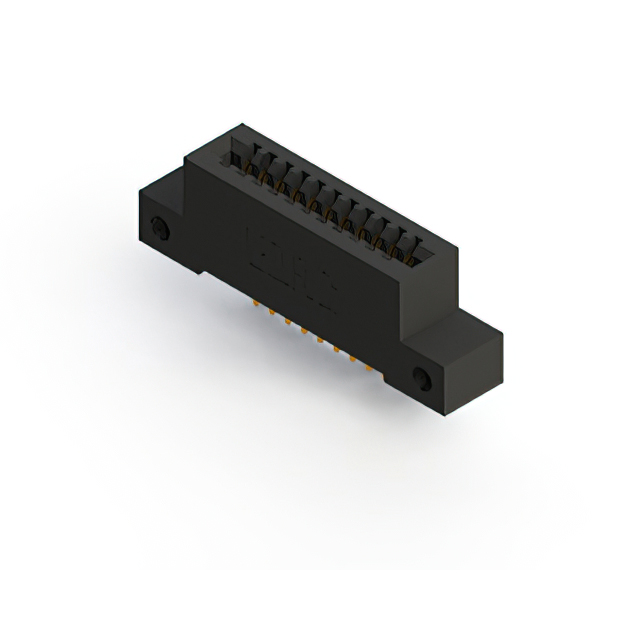

The EDAC Inc. part number 892-011-541-112 is a standard card edge connector receptacle from the 892 series. It features 11 positions with a single row configuration and a 2.54 mm (0.100 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic housing. Designed for panel mount installation, it supports wire wrap termination. The unit is rated for 3 A current and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Single-row receptacle design for vertical panel mounting applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire wrap termination method provides secure electrical connections
• Polyphenylene sulfide housing offers high thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Test and measurement instrumentation backplanes
• Automotive electronics control units

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact contact plating thickness and insulation material specifications. Ensure that the selected variant matches the required panel cutout dimensions and mounting hole patterns for your chassis design. Cross-reference the terminal style to guarantee compatibility with your wire wrapping tools and assembly processes before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 11-position connection is required with a 2.54 mm pitch. It is suitable for applications demanding high-temperature resistance up to 125°C due to its PPS housing material. Choose this model over other series if wire wrap termination is preferred over soldering for easier field modifications or prototyping adjustments in panel-mounted configurations.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 892 series, which specializes in high-temperature card edge solutions. The series typically employs Polyphenylene Sulfide (PPS) for superior heat resistance compared to standard thermoplastics. This specific model represents a compact single-row option within the broader family of panel-mountable interconnects designed for demanding environmental conditions.

Edgeboard Connectors Replacement Considerations

Direct substitutes include EDAC part numbers 892-011-544-102 and 892-011-544-112, which share identical pin counts and pitch but may differ in contact orientation or plating variations. Verify mechanical fit and electrical ratings before swapping.
