892-013-520-103

Edgeboard Connectors Overview

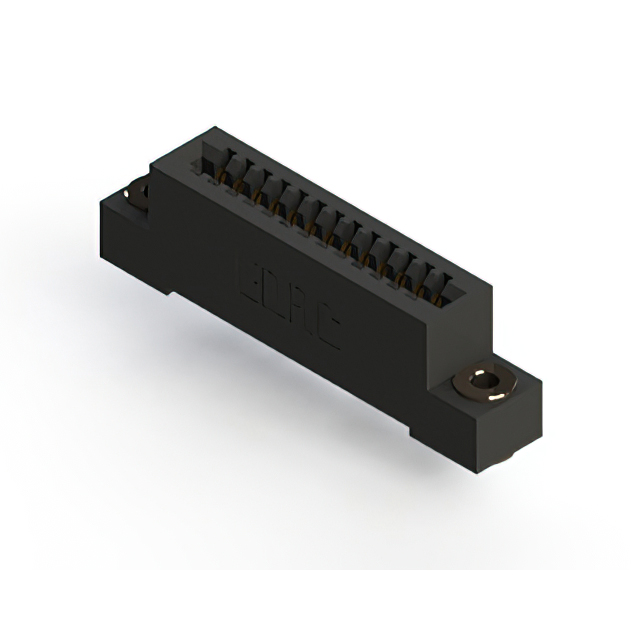

The EDAC Inc. 892-013-520-103 is a standard card edge connector receptacle designed for single-edge board applications. It features 13 positions with a 2.54 mm (0.100 inch) pitch and accommodates a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. Rated for 3 A current, it offers an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +125°C. The connector employs solder pin termination and supports right-angle panel mount installation.

Edgeboard Connectors Feature Summary

• Constructed with high-temperature polyphenylene sulfide (PPS) insulator material
• Features gold-plated copper alloy contacts for reliable signal transmission
• Supports right-angle panel mount installation for space-constrained designs

Edgeboard Connectors Applications

• Single-edge circuit board interconnection systems
• High-temperature electronic assemblies requiring robust thermal stability
• Panel-mounted modular hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm terminal type and plating specifications. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the right-angle panel mount configuration aligns with the mechanical enclosure design requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle receptacle is required for boards with a 1.57 mm thickness. The PPS housing makes it suitable for environments exceeding standard temperature limits. Confirm that the 13-position count matches the signal requirements and that the 2.54 mm pitch fits the existing layout constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 892 series of standard card edge connectors. The series provides various row counts, mounting styles, and termination options. The 892 series is characterized by its use of high-temperature PPS materials and gold contact plating, distinguishing it from lower-temperature thermoplastic alternatives in the manufacturer's portfolio.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 892 series variants such as 892-013-520-102 or 892-013-521-103 if different termination or packaging configurations are needed. Verify that any substitute maintains the same 2.54 mm pitch, 1.57 mm board thickness tolerance, and right-angle panel mount geometry.
