892-027-523-108

Edgeboard Connectors Overview

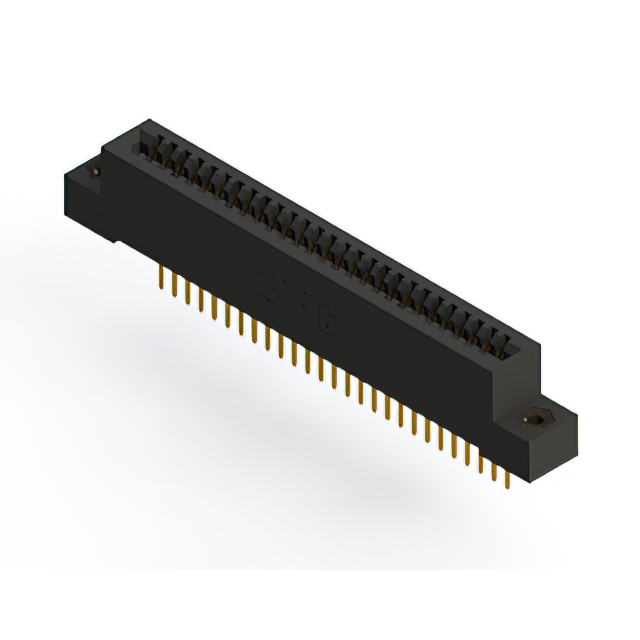

The EDAC Inc. 892-027-523-108 is a standard card edge connector receptacle designed for single-edge board insertion. It features 27 positions with a 0.100 inch (2.54 mm) pitch and supports a maximum PCB thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. Rated for 3 A current, it operates within a temperature range of -40°C to +125°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Gold-plated contacts ensure reliable signal transmission in high-performance applications.
• Polyphenylene sulfide housing provides structural stability and thermal resistance.
• Panel mount vertical orientation facilitates secure integration into chassis systems.

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact termination type and plating specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through the manufacturer's latest technical sheets. Validate that the selected variant matches the required panel mounting configuration for the intended assembly.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 27-position connection is required for vertical panel mounting. Verify that the 0.100 inch pitch aligns with the mating card edge design. Consider the PPS material properties for environmental resilience. Ensure the 3 A current rating meets the electrical load requirements of the application circuit without derating issues.

Edgeboard Connectors Part Context

This part belongs to the EDAC 892 series of high-temperature card edge connectors. The series is characterized by robust construction suitable for demanding environments. It serves as a critical interface component for connecting printed circuit boards to system infrastructure, ensuring stable electrical pathways across various industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify pin count, pitch, and termination style match exactly. Cross-reference dimensional drawings to ensure mechanical fit within the existing enclosure constraints before implementing any alternative components.
