892-032-540-101

Edgeboard Connectors Overview

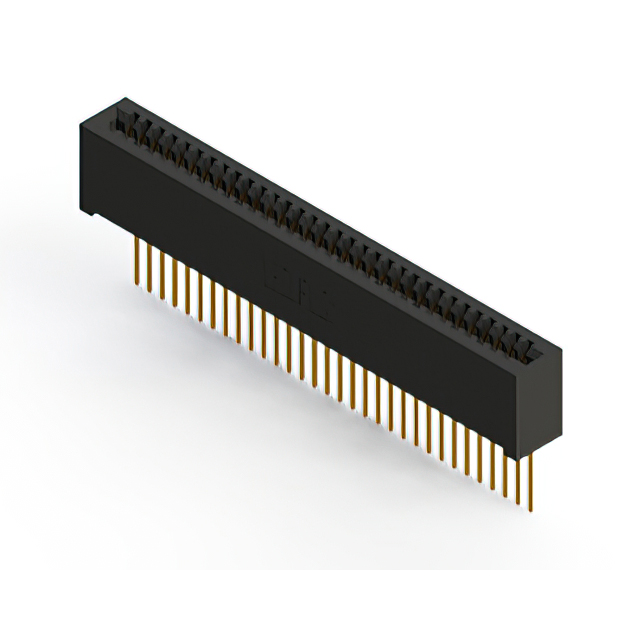

The EDAC Inc. 892-032-540-101 is a high-temperature card edge connector from the 892 series, designed for single-edge board applications. It features 32 positions with a 0.100 inch (2.54 mm) pitch and utilizes female contacts. The component employs wire wrap termination and is constructed with a black polyphenylene sulfide (PPS) housing and copper alloy terminals. Gold plating ensures reliable conductivity, while the unit supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction utilizing polyphenylene sulfide insulation
• Single-edge configuration with wire wrap termination for secure attachment
• Gold-plated copper alloy contacts ensuring durable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring elevated thermal stability
• High-temperature electronic assemblies
• Panel-mounted circuit board interconnections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm terminal style and flange options. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the wire wrap termination method aligns with the assembly process capabilities. Cross-reference the high-temperature rating requirements with the operational environment specifications before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this model when a single-edge connection is required for boards with a standard 1.57 mm thickness. The 892 series is appropriate for environments exceeding standard temperature limits due to its PPS material composition. Verify that the wire wrap termination suits the available manufacturing infrastructure. Consider the 32-position count and 2.54 mm pitch for density constraints in the design layout.

Edgeboard Connectors Part Context

This component belongs to the EDAC 892 series, which specializes in high-temperature card edge connectors. The series is characterized by the use of polyphenylene sulfide (PPS) for enhanced thermal performance compared to standard materials. The 892 series offers various position counts and termination styles, catering to diverse industrial and commercial electronic integration needs where reliability under heat stress is critical.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 892 series variants with matching pin counts and termination types. Verify equivalent thermal ratings and material compositions when considering alternative manufacturers. Ensure that any replacement maintains the 0.100 inch pitch and single-edge configuration to fit existing mechanical constraints.
