892-058-540-203

Edgeboard Connectors Overview

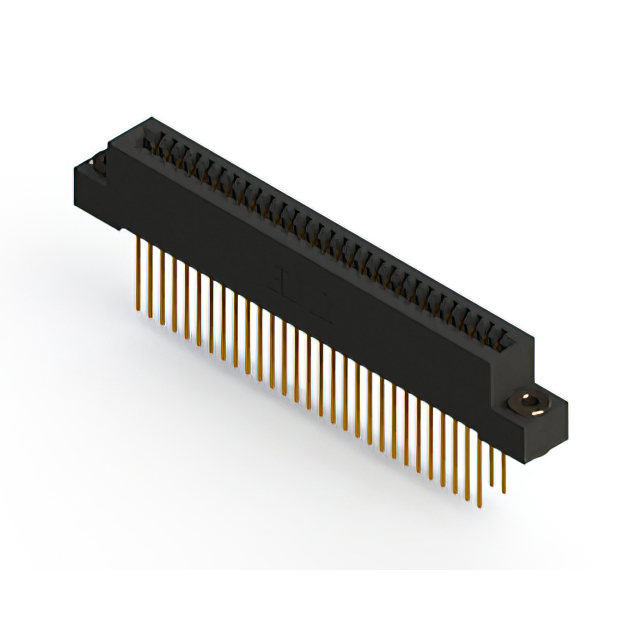

The EDAC Inc. part number 892-058-540-203 is a dual-edge female card edge connector designed for high-density interconnect applications. It features 58 positions with a 0.100-inch (2.54mm) pitch and utilizes gold-plated contacts to ensure reliable signal transmission. The housing is constructed from black thermoplastic insulation, providing durability in demanding environments. This component supports an operating temperature range of -40°C to +125°C, making it suitable for industrial and commercial use cases requiring robust connectivity.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Black thermoplastic insulation housing for structural integrity
• Flush mount flange design with floating bobbin feature

Edgeboard Connectors Applications

• Industrial control systems requiring durable connections
• Commercial electronic equipment needing stable signal paths
• Automotive electronics operating in varied thermal conditions

Edgeboard Connectors Procurement Notes

Verify the specific manufacturing date code and lot traceability upon order confirmation to ensure compliance with project requirements. Confirm that the supplier provides original manufacturer documentation or authorized distribution certificates. Check for any RoHS or REACH compliance declarations required by your regional regulations before finalizing the purchase agreement.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 2.54mm pitch is required for vertical board mounting. Ensure the PCB thickness matches the connector's tolerance specifications. Consider the 125°C maximum operating temperature limit for high-heat environments. Verify that the flush mount flange dimensions align with the chassis cutout requirements for proper mechanical installation.

Edgeboard Connectors Part Context

This component belongs to the EDAC standard card edge connector family, specifically engineered for general-purpose interconnect solutions. It complements other EDAC products used in communication, consumer electronics, medical, energy, and industrial sectors. The series offers various pin counts and configurations to support diverse system architectures and integration needs.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate cross-compatibility based on pitch, row count, and mounting style if sourcing alternatives.
