Edgeboard Connectors Overview

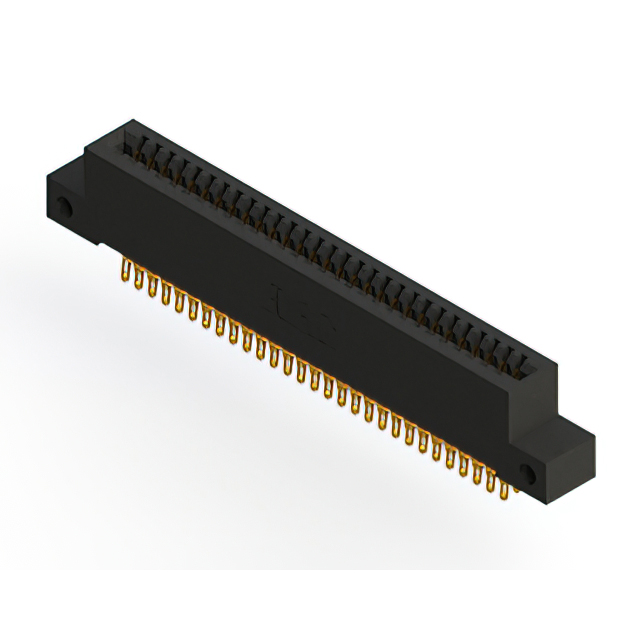

The EDAC Inc. 892-058-555-212 is a standard card edge connector designed for dual-edge board insertion. It features 58 positions with a 0.100 inch (2.54 mm) pitch and a 0.200 inch (5.08 mm) row spacing. The connector utilizes gold-plated copper alloy contacts housed in a black thermoplastic body. Rated for 3 A current, it supports panel mount installation at a right angle. The component complies with RoHS standards and offers reliable electrical performance for high-density interconnect applications.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure dual-edge card engagement
• Gold-plated copper alloy terminals ensure low contact resistance and corrosion resistance
• Right-angle panel mount design facilitates efficient space utilization in enclosures

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Consumer electronics internal board connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and material certifications. Confirm that the required pitch and row spacing match the target PCB layout dimensions. Ensure compatibility with the mating card edge thickness specifications provided in the official datasheet before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 2.54 mm pitch is required for panel-mounted applications. Consider the right-angle orientation for spatial constraints and verify that the 3 A current rating meets the circuit requirements. Ensure the black thermoplastic housing material aligns with environmental and thermal management needs of the assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 892 series of edgeboard connectors, which are engineered for robust signal transmission in demanding environments. The series emphasizes durability and precise alignment for dual-edge cards. This specific model represents a standard configuration within the lineup, focusing on reliable connectivity for general-purpose electronic assemblies requiring high pin counts.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 892 series variants for alternative position counts or housing colors. Verify mechanical footprint compatibility if substituting with connectors from different manufacturers. Ensure mating card edge specifications remain consistent to maintain connection integrity.
