892-70-034-10-003101

Headers, Male Pins Overview

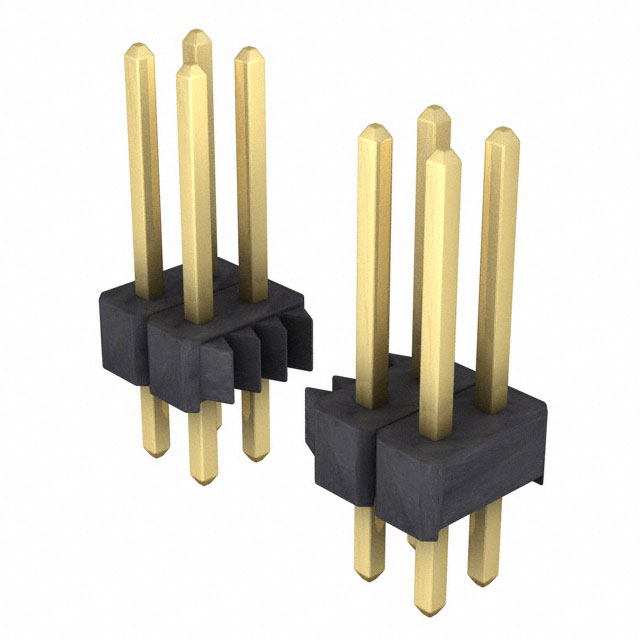

The Preci-Dip 892-70-034-10-003101 is a vertical male pin header connector designed for through-hole mounting. It features 34 positions with a 0.100" (2.54mm) pitch and two rows. The contacts are gold-plated brass pins, while the housing is black glass-filled polyamide rated UL94 V-0. Rated at 3A and 150VDC, it operates within -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Gold-plated contact surfaces for reliable conductivity
• Push-pull locking mechanism for secure mating

Headers, Male Pins Applications

• Industrial control system circuit boards
• Consumer electronics internal connections
• Telecommunications equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number against official Preci-Dip documentation to confirm pin count and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and row configuration. Check RoHS compliance status if required by project regulations.

Headers, Male Pins Selection Notes

Select this component when a vertical, two-row male header is required for PCB assembly. Consider the 3A current rating and 150VDC voltage limit for electrical safety. Verify that the through-hole termination method aligns with the manufacturing process capabilities.

Headers, Male Pins Part Context

This connector belongs to the Preci-Dip 892 series of headers. It provides a standardized solution for connecting printed circuit boards in compact electronic assemblies. The series offers various position counts and configurations to suit different density requirements.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 34-position, 2.54mm pitch male headers from manufacturers such as Samtec or Molex. Ensure mechanical dimensions and locking mechanisms match the original design constraints.
