895-005-500-103

Edgeboard Connectors Overview

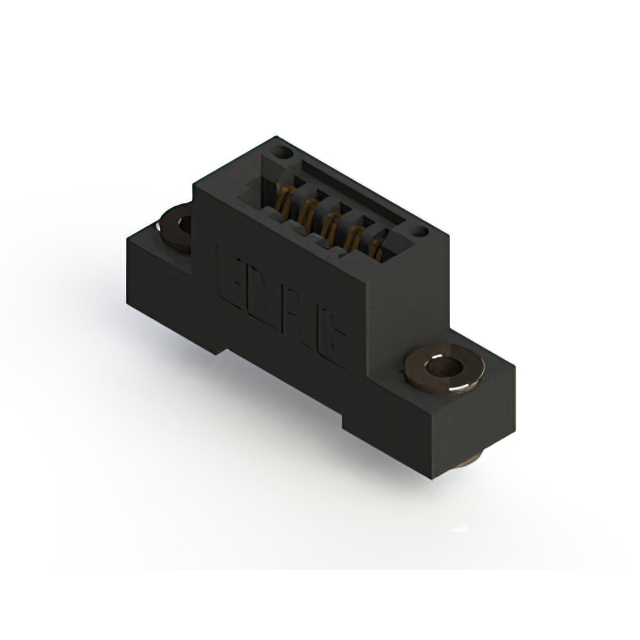

The EDAC Inc. 895-005-500-103 is a standard card edge connector from the 895 series, designed for reliable signal transmission in electronic assemblies. It features a single row of five female contacts with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy terminals and a black polyphenylene sulfide (PPS) insulator. It supports panel mount installation and solder termination, ensuring secure mechanical and electrical connections.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for non-specified card edge applications
• Gold-plated copper alloy terminals ensure durable conductivity
• Polyphenylene sulfide insulation provides thermal stability
• Panel mount design facilitates secure board integration

Edgeboard Connectors Applications

• General-purpose electronic circuit board interconnections
• Industrial control system module interfaces
• Telecommunications equipment signal routing
• Consumer electronics internal component linking

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required single-row, five-position configuration. Confirm that the gold plating thickness and PPS material composition align with environmental requirements. Ensure compatibility with the target card edge thickness and panel mounting constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with five positions is required. The 0.100-inch pitch suits standard PCB layouts. Consider the panel mount style for stable positioning. Verify that the operating temperature range meets the application's thermal demands. Ensure the solder termination method matches the assembly process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various configurations including single and dual rows with different pin counts. The 895-005-500-103 specifically addresses needs for compact, single-sided connections. It complements other series like the 845 high-temperature variants for specialized environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variations with different pin counts or row configurations. Cross-series replacements may require verification of pitch and mounting style compatibility. Ensure any alternative maintains the single-row female contact type and similar dimensional constraints.
