Edgeboard Connectors Overview

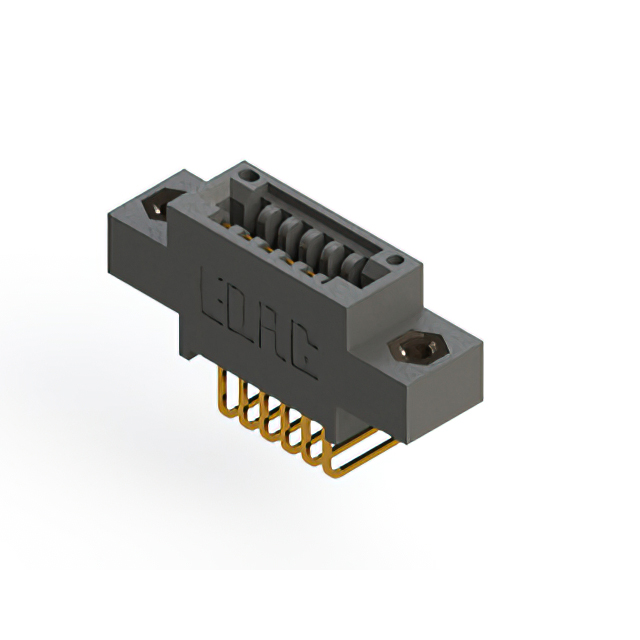

The EDAC Inc. 895-006-558-608 is a standard card edge connector designed for single-edge board applications. It features a 6-position female contact configuration with a 0.100-inch (2.54mm) pitch spacing. The connector utilizes gold-plated contacts on a copper alloy base, housed within a high-profile black polyphenylene sulfide (PPS) insulator body. It supports nominal printed circuit board thicknesses of 0.062 inches (1.57mm). This component is intended for through-hole termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Single-edge female connector design accommodating non-specified card types
• High-profile insulator body constructed from durable polyphenylene sulfide material
• Gold-plated copper alloy contacts ensure reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment interface modules
• Consumer electronic device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact physical dimensions and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS3 compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a single-row, low-count connection is required for vertical panel or board-to-board mounting. The 0.100-inch pitch allows for standard trace routing. Consider the high-profile housing for improved mechanical stability during insertion. Verify that the 6-position count meets the circuit requirements without unnecessary pin density.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles. The 895-006 variant specifically addresses compact single-edge applications. It shares common material properties and contact plating standards with other members of the 895 family, ensuring consistent performance characteristics across the product line.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for direct substitutes with different position counts or mounting orientations. Cross-reference compatible parts from NorComp or Northern Technologies if alternative sourcing is necessary, ensuring identical pitch and board thickness specifications are maintained.
