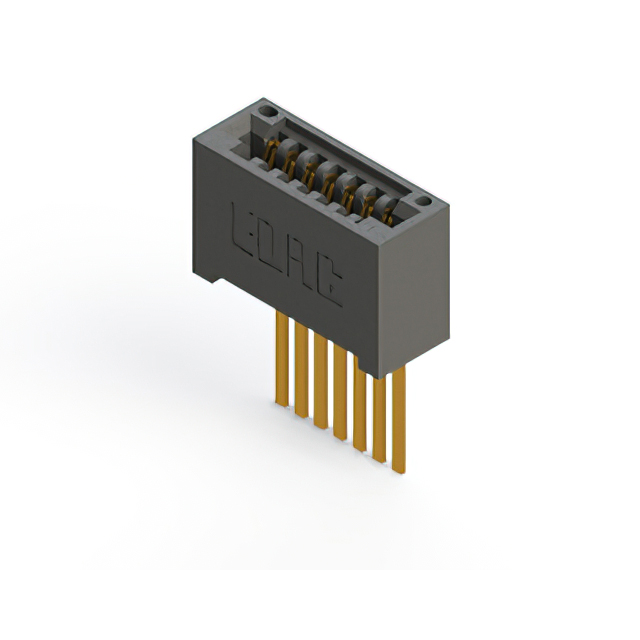

895-007-544-101 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 7POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-007-544-101
- Description：CONN EDGE SINGLE FML 7POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：7
- Number of Positions：7
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-007-544-101
Edgeboard Connectors Overview
The EDAC Inc. 895-007-544-101 is a standard card edge connector designed for single-row applications. It features seven female contacts with a 0.100 inch (2.54mm) pitch. The unit utilizes gold-plated copper alloy terminals and a black polyphenylene sulfide insulator. It supports wire wrap termination and accommodates board thicknesses of 1.57mm. The component operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Single-row configuration with seven female contacts
- Gold-plated copper alloy terminals for reliable conductivity
- Black polyphenylene sulfide insulator material
- Wire wrap termination style
Edgeboard Connectors Applications
- Standard card edge interconnections
- Industrial control systems
- Communication equipment
- Medical devices
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm single-row configuration and wire wrap termination. Ensure compatibility with target board thickness and operating temperature requirements before procurement. Cross-reference manufacturer datasheets for accurate RoHS compliance status.
Edgeboard Connectors Selection Notes
Select this component when a single-row, seven-position connection is required. Verify that the application environment falls within the specified temperature range. Confirm that wire wrap termination aligns with the assembly process. Check that the board thickness matches the connector specifications.
Edgeboard Connectors Part Context
This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and configurations. The 895-007 variant specifically provides a seven-contact solution for compact circuit board interconnections.
Edgeboard Connectors FAQ
What is the contact termination method?
The 895-007-544-101 uses a wire wrap termination method.
Is this a single or double row connector?
It is a single-row connector with seven positions.
