895-008-558-412

Edgeboard Connectors Overview

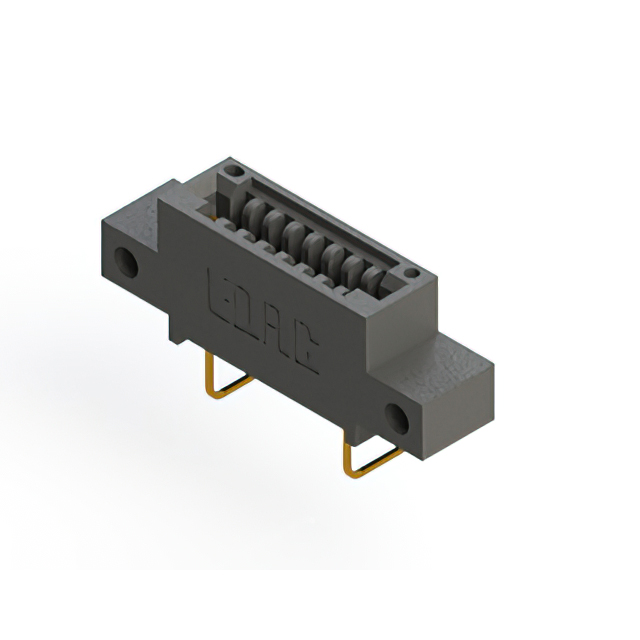

The EDAC Inc. 895-008-558-412 is an active card edge connector featuring 8 positions in a single row with a 0.100-inch (2.54mm) pitch. Designed for through-hole right-angle installation, it utilizes gold-plated copper alloy contacts and a black PPS insulator. The component supports board thicknesses of 0.031 to 0.062 inches and operates within a temperature range of -55°C to 125°C.

Edgeboard Connectors Feature Summary

• Single-row female configuration for non-specified card edge applications
• Gold-plated contact surfaces ensuring reliable signal transmission
• Right-angle through-hole termination for secure PCB mounting

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment modules
• Consumer electronics internal connections

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct contact plating and insulation material specifications. Confirm that the target application requires a single-row configuration rather than dual-row alternatives within the 895 series. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row interface is required for thin circuit boards. Ensure the mating card thickness falls within the specified mechanical limits. Consider the right-angle orientation for space-constrained vertical mounting scenarios where standard straight connectors are unsuitable.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 Series, a line of high-reliability card edge connectors designed for demanding environments. The series offers various pin counts and configurations, providing standardized interfaces for modular electronic systems requiring robust mechanical and electrical performance.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 895 series variants with identical pin counts and pitch but different row configurations or termination styles. Cross-brand replacements require matching pitch, contact count, and mounting orientation while verifying mechanical envelope compatibility.
