Edgeboard Connectors Overview

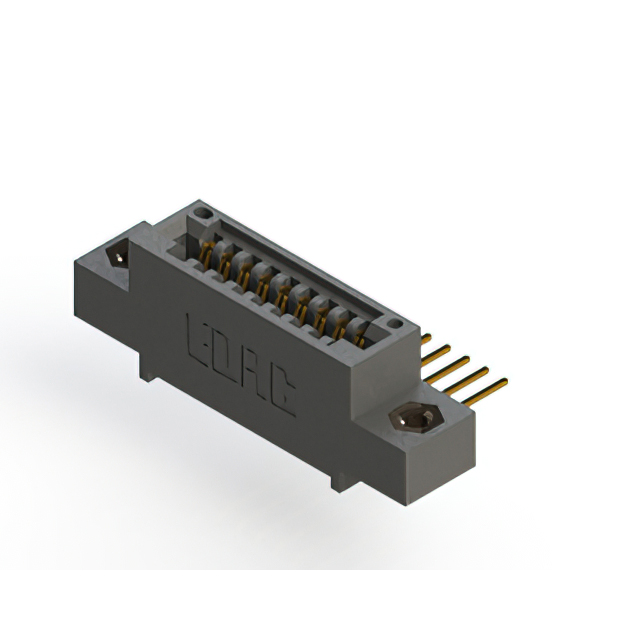

The EDAC Inc. 895-009-559-408 is a standard card edge connector designed for single-edge board applications. It features 9 positions with female contacts arranged in a single row. The connector utilizes a 0.100 inch (2.54 mm) pitch and accepts boards with thicknesses ranging from 0.031 to 0.062 inches. Constructed with a black polyphenylene sulfide insulator, it employs gold-plated copper alloy cantilever contacts. The unit supports right-angle through-hole solder termination and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for standard card edge insertion
• Gold-plated cantilever spring contacts ensure reliable electrical connection
• High-temperature polyphenylene sulfide insulation material
• Right-angle through-hole mounting with solder pin termination

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Consumer electronic device expansion slots
• Automotive embedded circuit connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact physical dimensions and termination style. Ensure compatibility with target PCB hole patterns and board thickness specifications before finalizing procurement orders to prevent integration failures.

Edgeboard Connectors Selection Notes

Select this component when a single-row female connector is required for non-specified card edges. Confirm that the target application board thickness falls within the specified acceptance range. Verify that the right-angle orientation aligns with the mechanical layout constraints of the assembly design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series provides various position counts and row configurations. The 895-009 variant specifically addresses low-pin-count requirements while maintaining the standard 0.100-inch pitch characteristic of the broader family.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Generic equivalents may differ in contact plating thickness or insulator material ratings.
