895-013-559-402

Edgeboard Connectors Overview

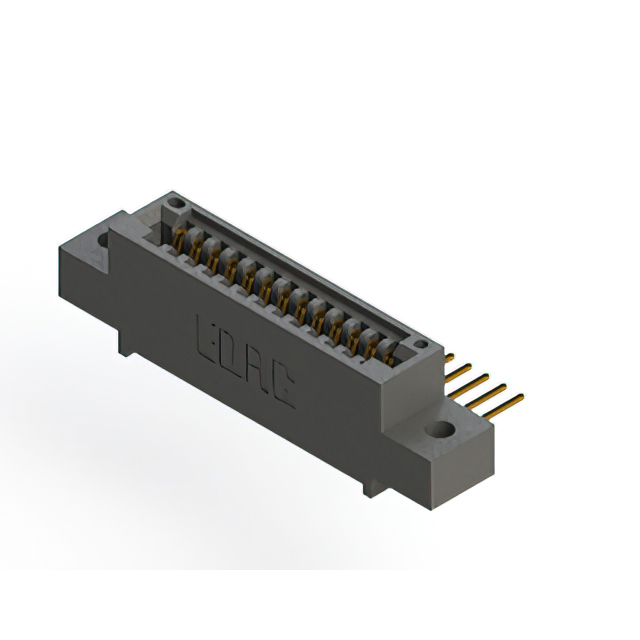

The EDAC Inc. 895-013-559-402 is a standard card edge connector receptacle featuring a single row of 13 positions with a 2.54 mm (0.100 inch) pitch. Designed for panel mount installation at a right angle, it utilizes gold-plated copper alloy contacts and a polyphenylene sulfide (PPS) insulator body. The component supports a nominal printed circuit board thickness of 1.57 mm and offers a current rating of 3 A. It operates within a temperature range of -40°C to +125°C and includes an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Accepts nominal 1.57 mm thick PCBs with .100 inch contact spacing
• High profile insulator body constructed from polyphenylene sulfide
• Gold-plated copper alloy contacts for reliable signal transmission

Edgeboard Connectors Applications

• Panel-mounted electronic interconnections
• Single-row card edge interface systems
• Industrial control hardware assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC ordering guide to confirm exact termination style, plating thickness, and mounting flange variations. Ensure the requested part matches the required PCB thickness tolerance and current rating specifications for the target application environment.

Edgeboard Connectors Selection Notes

Select this model when a single-row, right-angle receptacle is required for 1.57 mm thick boards. Confirm that the 3 A current rating and 5 GOhms insulation resistance meet system requirements. Verify compatibility with existing panel cutouts and mating card edge dimensions before procurement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series provides various position counts and termination options for robust electronic interconnects. The 895-013 variant specifically addresses applications requiring thirteen connection points in a single row configuration.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with identical mechanical dimensions and electrical ratings. Verify pin count, pitch, and mounting style compatibility before substituting.
