895-014-524-602

Edgeboard Connectors Overview

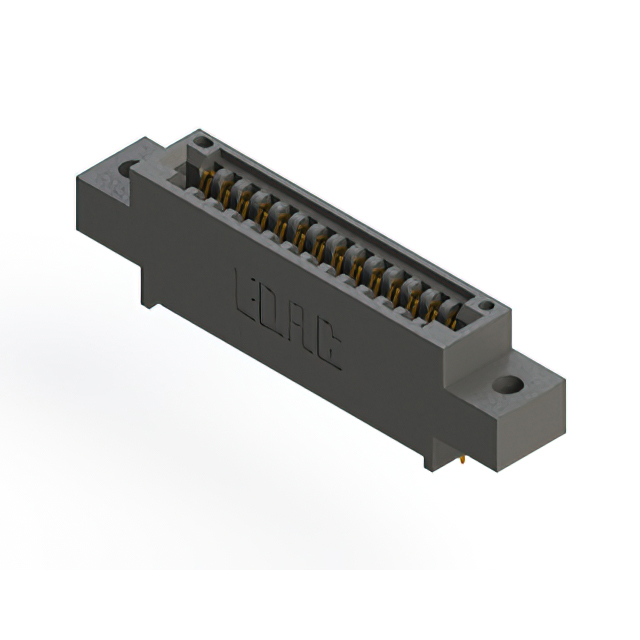

The EDAC Inc. 895-014-524-602 is a standard card edge connector from the 895 series, designed for through-hole mounting. It features a dual female configuration with 14 positions arranged in two rows. The contact spacing is 0.100 inches (2.54 mm), and it utilizes gold-plated copper alloy contacts with a thickness of 10.0 µin (0.25 µm). The insulator is made of black polyphenylene sulfide (PPS). This receptacle supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure durable connection performance
• Polyphenylene sulfide (PPS) insulator provides thermal stability
• Through-hole termination method ensures secure mechanical attachment

Edgeboard Connectors Applications

• General purpose electronic circuit interconnections
• Industrial control system module connections
• Communication equipment interface boards
• Automotive electronics sub-system linking

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target board thickness and pin count. Ensure that the ordering suffix matches the required contact plating and termination style. Cross-reference the datasheet for environmental compliance status such as RoHS and REACH before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 14-position card edge connector is required for vertical or panel mount applications. Consider the 0.100-inch pitch and PPS material properties for thermal resistance. Evaluate the gold contact finish for corrosion resistance needs. Confirm that the housing color and flange dimensions align with the enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and configurations for diverse interconnect needs. The 895-014 variant specifically addresses requirements for moderate density connections with robust mechanical locking features. It is part of a broader family of connectors designed for high-reliability industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other 895 series parts with identical pin counts and row configurations, such as 895-014-521-504 or 895-014-524-803, provided the specific suffix variations match the required termination and plating specifications. Verify dimensional compatibility before substitution.
