895-014-555-204

Edgeboard Connectors Overview

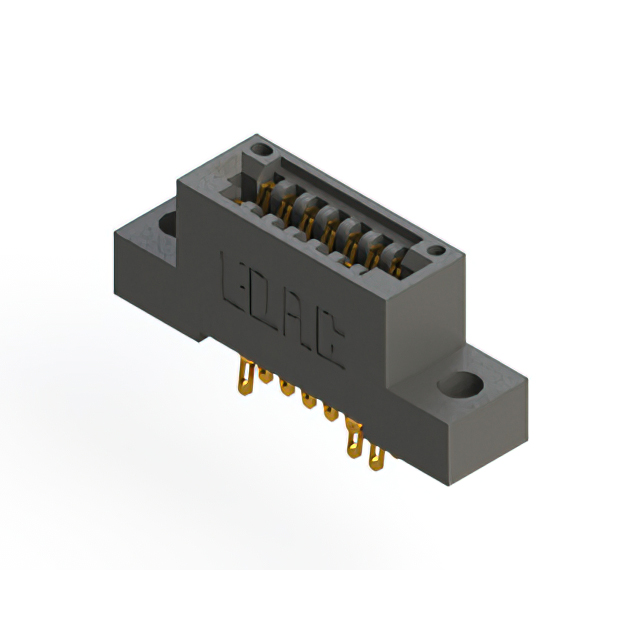

The EDAC Inc. 895-014-555-204 is a standard card edge connector from the 895 series, designed for high-temperature applications. It features a dual female configuration with 14 positions and a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts and a solder pin termination type. It supports a panel mount installation style at a vertical angle, accommodating a board thickness of 1.57 mm. The unit is rated for 3 A current and complies with RoHS standards.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction suitable for demanding environments
• Dual row female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance and conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications equipment infrastructure
• Medical device internal circuitry connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and insulator material variant. Ensure the target application environment temperature does not exceed the component's specified thermal limits. Confirm that the PCB design accommodates the required 1.57 mm board thickness and panel mounting constraints. Cross-reference the manufacturer datasheet for precise mechanical dimensions before integration.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 14-position connection is required with a standard 0.100-inch pitch. It is appropriate for designs needing vertical panel mounting and solder pin termination. Consider the 3 A current rating and high-temperature capability for industrial or medical use cases. Verify compatibility with the specific PCB stack-up and mounting hardware requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895/845 series of high-temperature card edge connectors. The series is characterized by durable materials and reliable performance in harsh conditions. The 895-014-555-204 specifically denotes a dual female receptacle with 14 positions, distinguishing it from single-row or different position count variants within the same product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 895 series connectors with matching 14-position dual female configurations. Verify that alternative part numbers maintain the same 0.100-inch pitch and vertical panel mount orientation. Ensure any replacement matches the gold-plated contact specification and solder pin termination style for electrical compatibility.
