895-014-558-804

Edgeboard Connectors Overview

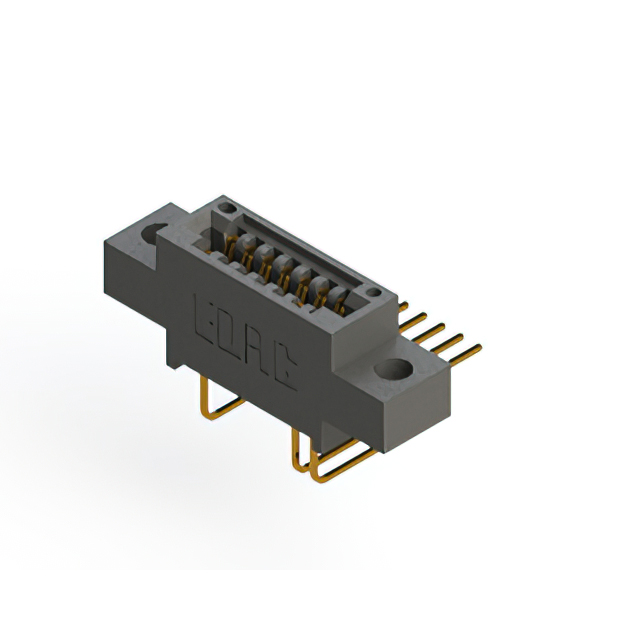

The EDAC Inc. 895-014-558-804 is a standard card edge connector from the 895 series, designed for through-hole mounting. It features a dual female configuration with 14 positions and a 0.100-inch (2.54mm) contact spacing. The connector utilizes gold-plated copper alloy contacts housed in a black polyphenylene sulfide (PPS) insulator body. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component supports a wide operating temperature range from -40°C to +125°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• High-profile insulator body constructed from polyphenylene sulfide for enhanced durability
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Accepts nominal 0.062-inch thick printed circuit boards
• Through-hole termination style for secure panel or board installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment utilizing standard card edge interfaces
• Consumer electronics assemblies needing high-temperature resistance
• Medical device hardware with strict environmental compliance needs

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 895 Series Ordering Guide to confirm mechanical dimensions and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS3 compliance requirements match project specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and authenticity before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row, 14-position interface is required for 0.062-inch thick cards. The PPS insulator material provides superior thermal stability compared to lower-grade polymers. The gold plating offers corrosion resistance suitable for harsh environments. Consider the through-hole mounting requirement and right-angle orientation if space constraints dictate vertical insertion into the mating board structure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series, which specializes in standard card edge connectors. The series is characterized by its use of polyphenylene sulfide insulators and gold-plated contacts. These connectors are engineered for applications demanding high reliability and environmental resilience. The 895 series complements other EDAC families like the 845, offering varied mounting options and row configurations for diverse electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with varying pin counts or row configurations. Verify that alternative parts maintain the same 0.100-inch pitch and 0.062-inch board thickness acceptance. Ensure replacement components share identical mounting styles and insulation materials to preserve mechanical and electrical performance integrity.
