895-017-500-608

Edgeboard Connectors Overview

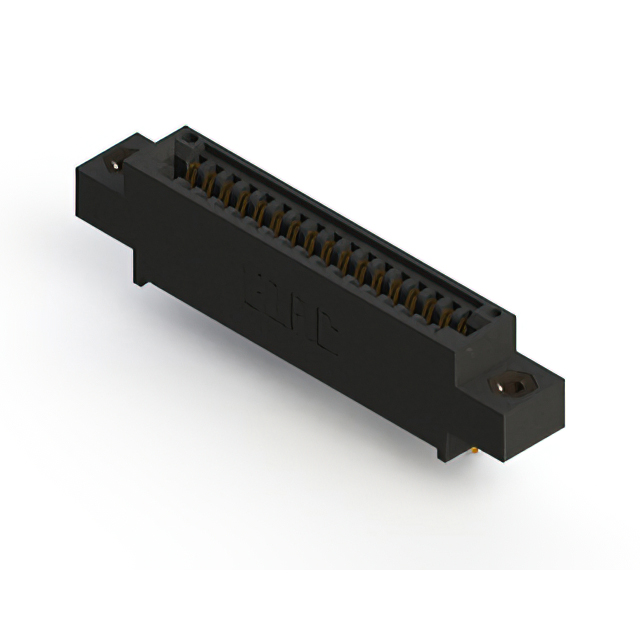

The EDAC Inc. 895-017-500-608 is a single-row female card edge connector featuring 17 positions with a 0.100-inch (2.54mm) contact spacing and 0.200-inch (5.08mm) row spacing. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It employs a high-profile insulator body constructed from durable materials, suitable for vertical panel mount installations in electronic systems requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• Single-row female configuration with 17 contact positions
• Gold-plated copper alloy contacts for enhanced conductivity
• High-profile insulator body design
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Edge-card interconnect applications
• Electronic system signal routing
• Panel-mounted circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact pin count, plating specifications, and mounting orientation. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS3 compliance status if required by project regulations. Cross-reference the DigiKey part number 151-895-017-500-608-ND for accurate sourcing details.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 17 positions is required. The 0.100-inch pitch is standard for general-purpose electronics. Verify that the application environment supports the operating temperature range specified in the datasheet. Consider the high-profile body height for enclosure clearance requirements. Ensure the mating card meets the specified thickness tolerance for proper contact engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various configurations including single and dual rows with different position counts. The 895 series is characterized by its reliability and suitability for harsh environments. This specific model represents a single-row variant within the broader product family designed for versatile electronic interconnect needs.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with differing pin counts or row configurations. No alternative part numbers are explicitly confirmed as functional equivalents in the provided documentation.
