895-018-521-203

Edgeboard Connectors Overview

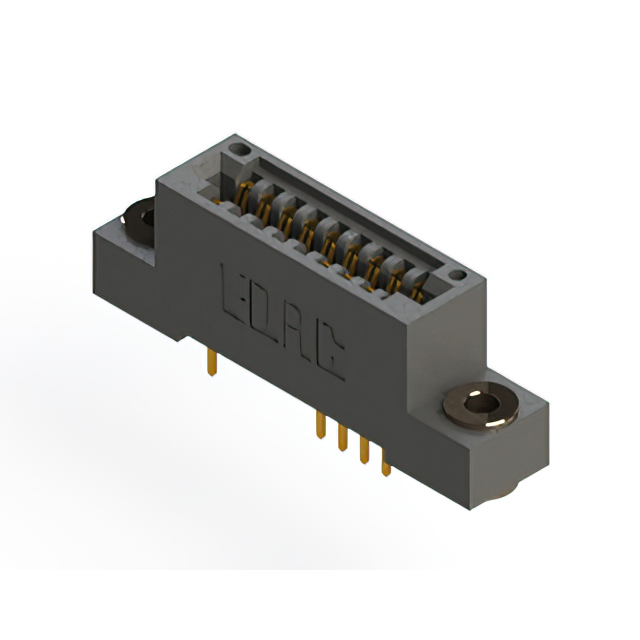

The EDAC Inc. 895-018-521-203 is a standard card edge connector receptacle featuring 18 positions with a 0.100-inch (2.54mm) pitch. Designed for vertical panel mount installation, it utilizes a solder pin termination type and gold-plated copper alloy contacts to ensure reliable signal transmission. The housing is constructed from black polyphenylene sulfide (PPS), providing robust insulation and thermal stability. This dual-edge female connector supports board thicknesses ranging from 0.054 to 0.070 inches, accommodating non-specified dual-edge cards within its operational temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure structural integration
• Gold-plated copper alloy contacts for enhanced conductivity
• Polyphenylene sulfide insulator for high thermal resistance

Edgeboard Connectors Applications

• Scientific instruments
• Rotary encoders
• Digital storage oscilloscopes
• Transducers
• Microcontrollers

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating thickness and terminal configuration. Ensure compatibility with target PCB edge thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer certificates as regulatory requirements may evolve over time.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for dual-edge card applications. The 18-position count and 2.54mm pitch define the interface density. Verify that the PPS material properties meet the environmental temperature requirements of the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles, catering to diverse industrial interconnect needs. The 895 series is recognized for its durability and consistent performance in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series variants for alternative position counts or mounting configurations. Verify mechanical dimensions and electrical ratings against direct substitutes to ensure functional equivalence without modification.
