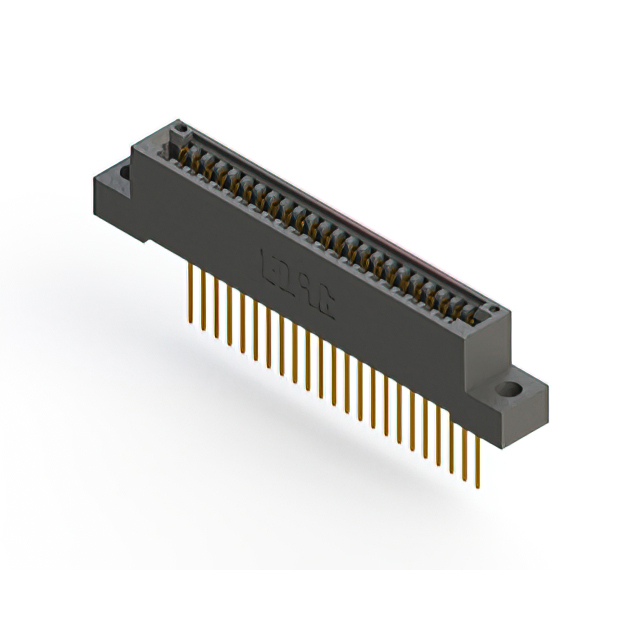

895-023-542-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 23POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-023-542-104
- Description：CONN EDGE SINGLE FML 23POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：23
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-023-542-104
Edgeboard Connectors Overview
The EDAC Inc. model 895-023-542-104 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a single row with 23 positions and a 0.100-inch (2.54mm) pitch. The contacts are gold-plated copper alloy, rated for 3A current, while the housing utilizes polyphenylene sulfide (PPS). It supports a board thickness of 1.57mm and operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Vertical panel mount configuration for secure installation
- Gold-plated copper alloy contacts ensure reliable conductivity
- Polyphenylene sulfide housing provides high-temperature stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment utilizing standard card edges
- Automotive electronics operating in high-temperature environments
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with the target PCB edge thickness of 1.57mm. Confirm that the 23-position count aligns with the design requirements before procurement.
Edgeboard Connectors Selection Notes
Select this component when a vertical, single-row connection is required for 23 signals. The 2.54mm pitch matches standard card edge profiles. Consider the PPS material if thermal resistance up to 125°C is necessary for the operational environment.
Edgeboard Connectors Part Context
This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options. This specific model represents a mid-range position count suitable for moderate density circuit board connections.
Edgeboard Connectors Replacement Considerations
Cross-reference with other EDAC 895 series variants for similar pitch and position counts. Verify mechanical dimensions and electrical ratings match before substituting.
