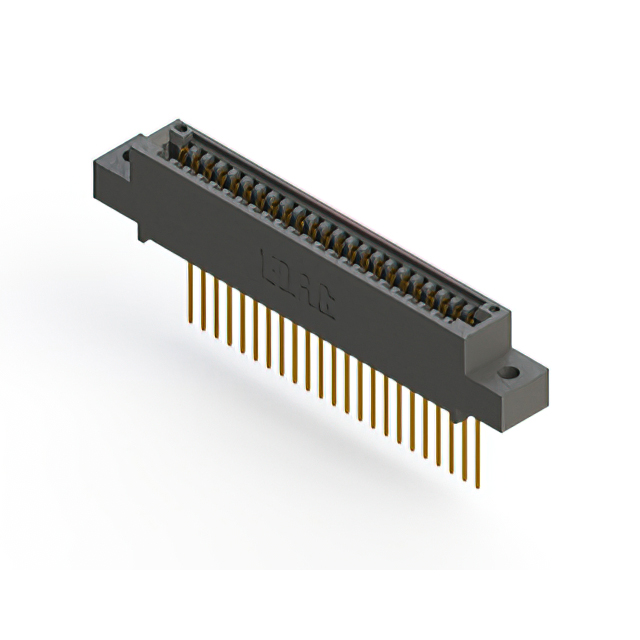

895-023-542-402 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 23POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-023-542-402
- Description：CONN EDGE SINGLE FML 23POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：23
- Number of Positions：23
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-023-542-402
Edgeboard Connectors Overview
The EDAC Inc. 895-023-542-402 is a standard single-row card edge connector featuring 23 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole panel mount installation, it utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide insulator. The component supports a maximum operating temperature of +125°C and a minimum of -40°C, ensuring reliable performance in demanding electronic environments.
Edgeboard Connectors Feature Summary
- Single row configuration with 23 contact positions
- Gold-plated copper alloy contacts for corrosion resistance
- Polyphenylene sulfide insulator material
- Through-hole panel mount right-angle design
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Computing hardware backplanes
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Cross-reference RoHS compliance status directly with the manufacturer's current datasheet to meet regulatory requirements.
Edgeboard Connectors Selection Notes
Select this connector when a single-row interface with 23 positions is required. The 2.54mm pitch accommodates standard board widths. Verify that the panel mount orientation matches the enclosure design constraints. Confirm that the thermal rating meets the application's operational environment specifications.
Edgeboard Connectors Part Context
This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options. It is designed for high-reliability applications requiring robust mechanical connections between circuit boards and backplanes.
Edgeboard Connectors Replacement Considerations
Direct substitutes include other EDAC 895 series variants with matching position counts. Verify pinout and dimensional tolerances before replacing. Consult official cross-reference lists for compatible alternatives.
