895-024-520-104

Edgeboard Connectors Overview

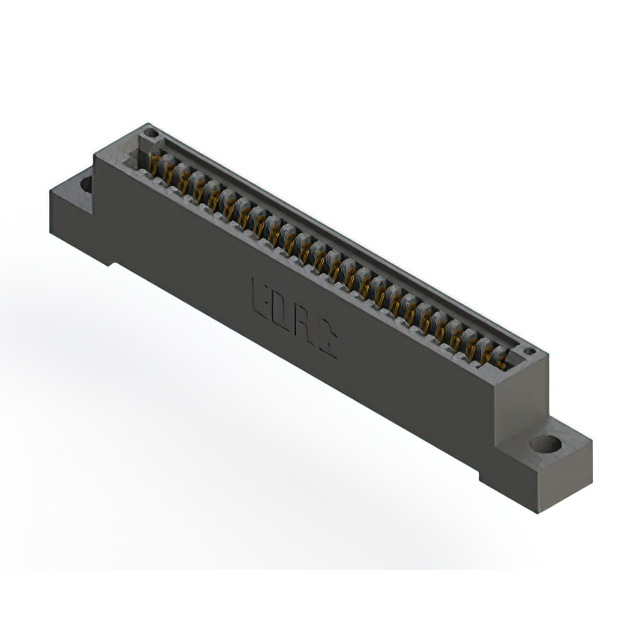

The EDAC Inc. 895-024-520-104 is a standard card edge connector receptacle designed for through-hole mounting. It features a dual-row configuration with 24 total positions, providing a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance
• Through-hole termination method for secure PCB attachment
• Polyphenylene sulfide insulation material for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Automotive electronics circuit boards
• Test and measurement instrumentation hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix matches the required row count and board thickness tolerance. Confirm RoHS compliance status if restricted materials are prohibited in your assembly process. Ensure the selected variant aligns with the intended panel or backplane mechanical constraints before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this component when a dual-row edge connector is required for vertical mating applications. The 0.100-inch pitch accommodates standard PCB trace spacing. Verify that the target board thickness falls within the specified 0.054 to 0.070-inch range to ensure proper contact engagement and mechanical retention during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse electronic assembly needs. The 895-024-520-104 specifically addresses requirements for 24-position dual-row connections using through-hole technology.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 895 series variants with identical 24-position dual-row specifications. Cross-reference mechanical dimensions and contact plating requirements when evaluating alternative manufacturers to ensure functional compatibility.
