Edgeboard Connectors Overview

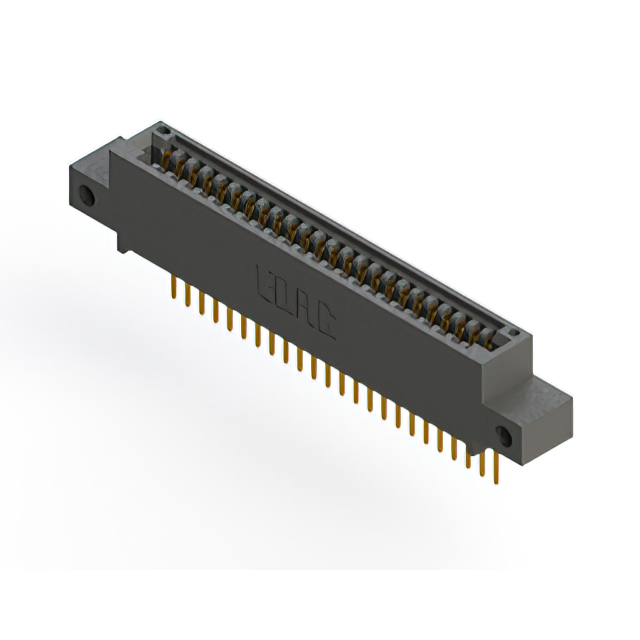

The EDAC Inc. 895-024-523-412 is a standard single-row card edge connector designed for vertical panel mount applications. It features 24 positions with a .100 inch (2.54 mm) pitch and utilizes gold-plated copper alloy contacts for reliable signal transmission. The housing is constructed from black polyphenylene sulfide (PPS), providing durability and thermal stability. This receptacle supports a board thickness of 1.57 mm and employs solder pin termination for secure PCB attachment. Rated for 3 A current, it operates within a temperature range of -40 C to +125 C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single row configuration with 24 positions for compact circuit integration
• Gold-plated copper alloy contacts ensure corrosion resistance and low contact impedance
• Polyphenylene sulfide (PPS) housing provides high thermal stability and mechanical strength
• Vertical panel mount design facilitates direct chassis or enclosure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and material variants. Ensure compatibility with target PCB edge card dimensions, particularly the 1.57 mm thickness requirement. Confirm RoHS compliance status through official manufacturer documentation prior to procurement. Cross-reference distributor catalogs for accurate availability and lead times as supply chain conditions may vary.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required for panel-mounted assemblies. The 2.54 mm pitch suits standard digital and analog signal routing. Verify that the 3 A current rating meets system power distribution needs. Consider the PPS material properties for environments demanding higher thermal resilience compared to standard thermoplastics.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which specializes in standard card edge solutions. The series offers various position counts and mounting styles to accommodate diverse board form factors. The 895-024-523-412 specifically addresses applications needing a 24-position interface with vertical orientation and panel mounting capabilities.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the precise 1.57 mm board thickness tolerance or PPS material specifications. Verify electrical ratings and dimensional drawings before implementing any cross-referenced components.
