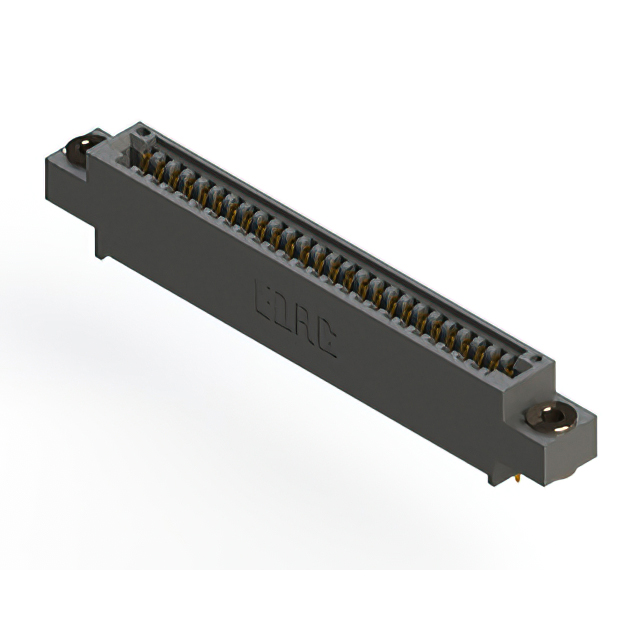

895-026-520-603

$54.59

Description：CONN EDGE SINGLE FML 26POS 0.100
Series：895
Mfr：EDAC Inc.
Package：Bulk

SKU:e6b0f3ad1b59 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

895-026-520-603 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 26POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 895-026-520-603

Description：CONN EDGE SINGLE FML 26POS 0.100
Series：895
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：26
Number of Positions：26
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 895-026-520-603

895-026-520-603

Edgeboard Connectors Overview

The EDAC Inc. 895-026-520-603 is a standard card edge connector receptacle featuring 26 positions arranged in a single row with a 2.54 mm pitch. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts and a polyphenylene sulfide (PPS) housing. The component supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C. It employs a solder pin termination type and accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

Single-row female card edge receptacle configuration
Gold-plated copper alloy contact material
Polyphenylene sulfide insulating housing
Panel mount right-angle or vertical installation

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Consumer electronics module interfaces
Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific orientation suffix in the ordering code, as EDAC part numbers often distinguish between vertical and right-angle mounting styles. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the selected variant matches the required PCB thickness specification of 1.57 mm for proper mechanical engagement and signal integrity.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 26 positions is required. Verify that the 2.54 mm pitch aligns with the mating card edge design. Consider the 3 A current rating and PPS thermal stability for high-temperature environments. Confirm whether the application requires a vertical or right-angle panel mount configuration based on the chassis layout constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting orientations. The 895-026-520-603 specifically provides a 26-position solution. It is designed for reliable signal transmission in dense electronic assemblies requiring robust mechanical retention and electrical performance.
