895-026-556-207

Edgeboard Connectors Overview

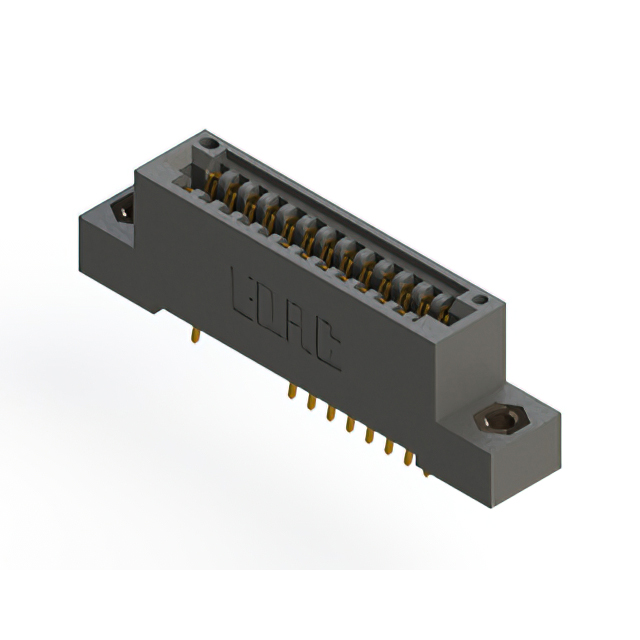

The EDAC Inc. model 895-026-556-207 is a standard card edge connector designed for dual-edge applications. It features a 26-position female contact configuration with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated contacts and a black insulator body, suitable for reliable signal transmission in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for board insertion
• Gold-plated contact surfaces for enhanced conductivity
• Standard 0.100 inch pitch spacing between positions

Edgeboard Connectors Applications

• Electronic circuit board interconnections
• Industrial control system modules
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for the 895 series to confirm mechanical dimensions and material specifications. Ensure compatibility with the target PCB card thickness and mounting requirements before integration into the final assembly design.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 26-position count is required. The 0.100-inch pitch and gold plating are key selection criteria for maintaining signal integrity in standard density applications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options, providing flexibility for different panel mount and vertical installation needs within industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series variants for alternative pin counts or termination styles. Verify that substitute parts maintain the same 0.100-inch pitch and dual-edge female configuration to ensure mechanical fit.
