895-027-520-101

Edgeboard Connectors Overview

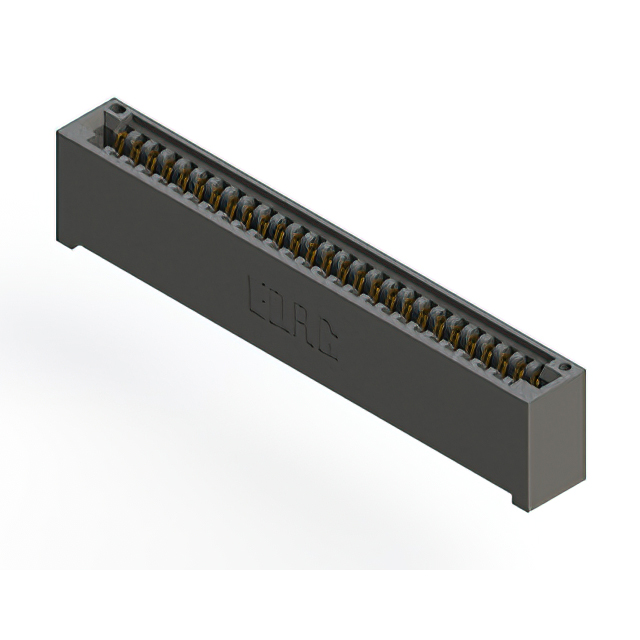

The EDAC Inc. 895-027-520-101 is a card edge connector from the 895 series, designed for single-sided board applications. It features 27 positions with a female contact type and a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts housed in a black polyphenylene sulfide (PPS) insulator. It supports a card thickness range of 0.031 to 0.062 inches and operates within a temperature range of -55°C to 125°C.

Edgeboard Connectors Feature Summary

• Single-sided female receptacle configuration for non-specified card edge boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Polyphenylene sulfide insulator provides UL 94V-0 flame resistance
• Through-hole termination method for secure PCB mounting

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment signal routing
• Consumer electronics internal board connections
• Medical device circuit integration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 895 Series Ordering Guide to confirm exact physical dimensions and plating specifications. Ensure compatibility with the target card edge thickness and verify that the single-sided configuration matches the design requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-sided connection is required for boards with a 0.100-inch pitch. Consider the PPS material for high-temperature stability and the gold plating for corrosion resistance. Confirm that the through-hole mounting style aligns with the assembly process and available PCB real estate.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series, which offers standard card edge connectors. The series is characterized by its use of polyphenylene sulfide insulation and gold-plated contacts, providing durability and performance for various electronic applications across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with different pin counts or orientations. Verify mechanical fit and electrical continuity with alternative single-sided connectors from other manufacturers if necessary.
