895-031-500-103

Edgeboard Connectors Overview

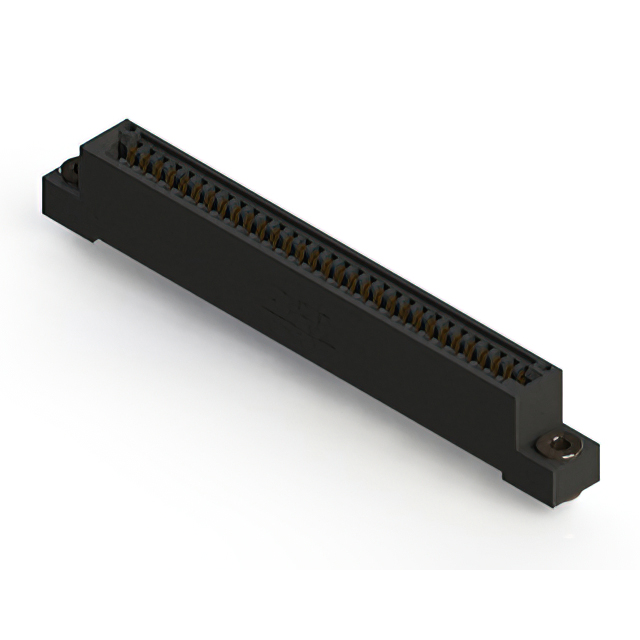

The EDAC Inc. 895-031-500-103 is a standard card edge connector from the 895 series, designed for high-temperature applications. It features a single row with 31 positions and a female contact type. The connector utilizes a 0.100" (2.54mm) pitch and accepts board thicknesses of 1.57 mm. Constructed with a black polyphenylene sulfide (PPS) insulation body and gold-plated copper alloy contacts, it ensures reliable performance. The unit employs a solder pin termination method and supports panel mount installation.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding environments
• Gold-plated contacts on a copper alloy base for durability
• Panel mount design with flush mount flange feature

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment interfaces
• Agricultural technology hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure correct flange and mounting configurations match the design requirements. Confirm compliance with RoHS3 and REACH regulations prior to integration. Cross-reference the datasheet for precise dimensional tolerances and mating force specifications to guarantee mechanical compatibility with the target printed circuit board assembly.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 31-position interface is required for panel-mounted applications. The 0.100 inch pitch accommodates standard board layouts, while the PPS material provides thermal stability. Ensure the target PCB thickness aligns with the specified 1.57 mm requirement for proper insertion and retention.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 Series, which specializes in high-temperature card edge connectors. The series offers various position counts and mounting styles, catering to diverse industrial and medical needs. The 895-031-500-103 specifically addresses the need for reliable signal transmission in elevated temperature conditions using standard spacing.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for direct substitutes with differing position counts or flange options. Verify that any alternative maintains the same 0.100 inch pitch and PPS insulation material to preserve thermal and electrical characteristics.
