895-031-523-108

Edgeboard Connectors Overview

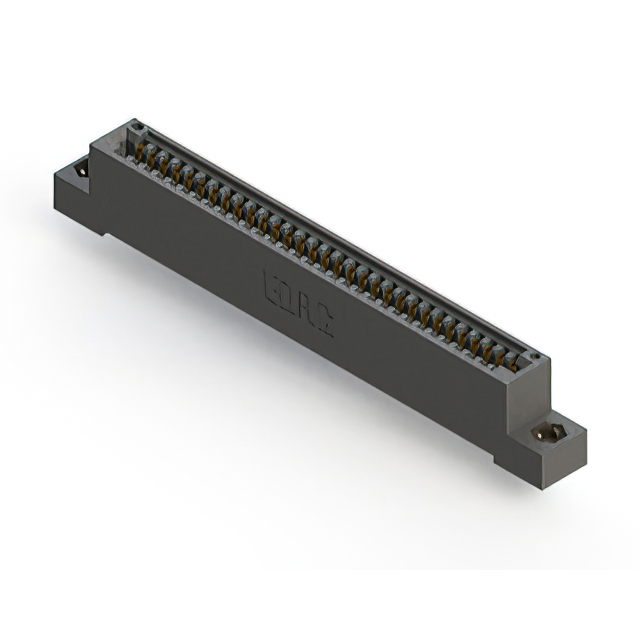

The EDAC Inc. 895-031-523-108 is a standard card edge connector from the 895 series, designed for single-row applications. It features 31 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes female contacts made of copper alloy with gold plating, housed in a black polyphenylene sulfide (PPS) insulator. It supports board thicknesses of 1.57 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for non-specified card edge applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Polyphenylene sulfide insulation provides thermal stability and durability

Edgeboard Connectors Applications

• Standard card edge interconnects
• Panel mount installations
• Wire wrap termination circuits

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct termination style and mounting orientation. Confirm that the target PCB design accommodates the specified 0.100 inch pitch and single-row layout. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, panel-mount solution with wire wrap termination is required. Ensure the mating card thickness aligns with the 1.57 mm specification. Consider the operating temperature range and PPS material properties for environmental suitability compared to other series options.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific model represents a single-row variant, distinct from dual-row counterparts like the 895-092 series, providing a compact solution for lower pin count applications.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series single-row models for alternative position counts. Verify mechanical dimensions and electrical ratings against similar products from other manufacturers if substitution is necessary.
