895-032-540-804

Edgeboard Connectors Overview

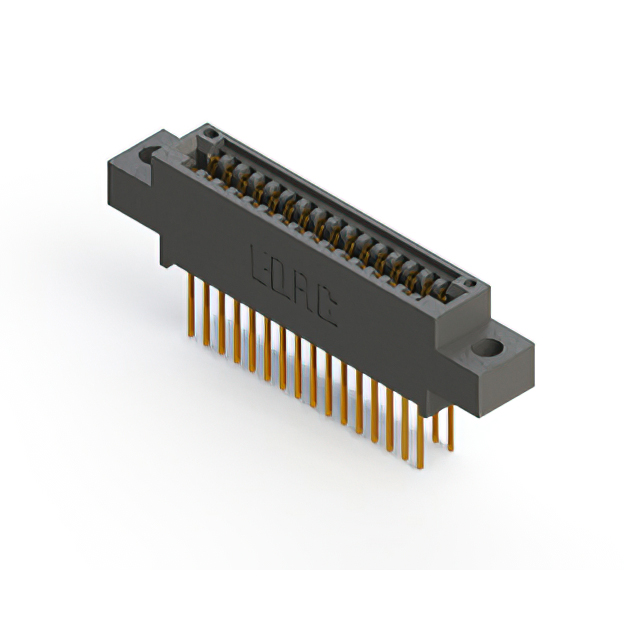

The EDAC Inc. 895-032-540-804 is a dual-edge female card edge connector with 32 positions arranged in two rows of 16. It features a 0.100-inch (2.54mm) pitch and utilizes cantilever contacts made of copper alloy with a gold finish. The housing is constructed from black polyphenylene sulfide (PPS). Designed for through-hole, right-angle installation, it supports board thicknesses within standard ranges and operates between -40°C and 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with cantilever contact type for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance and low contact resistance
• Polyphenylene sulfide insulation provides thermal stability and mechanical strength
• Right-angle through-hole mounting facilitates compact PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment board-to-board connections
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and flange features. Ensure compatibility with target PCB trace width and spacing. Confirm RoHS compliance status for regulatory adherence. Check moisture sensitivity level requirements for assembly processes. Validate operating temperature range against environmental conditions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 32 positions and 0.100-inch pitch is required. Consider the right-angle through-hole mounting style for space-constrained designs. Evaluate the PPS material properties for high-temperature environments. Compare contact current ratings against system load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting options. It is designed for general-purpose electronic applications requiring durable and reliable interconnections. The manufacturer provides detailed datasheets and CAD models for design integration.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference pin count, pitch, and mounting style before substitution. Verify electrical and mechanical specifications match the original design requirements.
