895-034-540-102

Edgeboard Connectors Overview

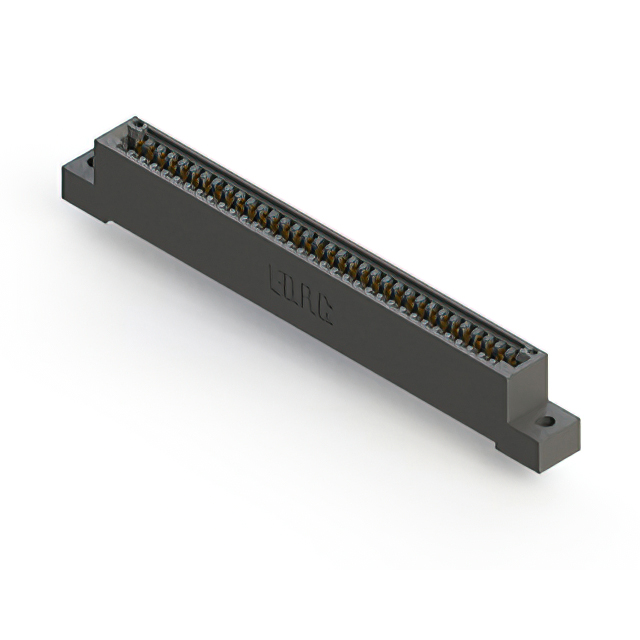

The EDAC Inc. 895-034-540-102 is a standard card edge connector from the 895 series, designed for single-row applications. It features 34 positions with a 0.100-inch (2.54mm) pitch. The connector utilizes female contacts made of copper alloy with gold plating. It is constructed with a black polyphenylene sulfide (PPS) insulator and supports panel mount installation in a vertical orientation. The unit is rated for operation between -40°C and +125°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for non-specified card edge interfaces
• Gold-plated copper alloy contacts ensure reliable electrical connection
• Polyphenylene sulfide insulator provides UL 94V-0 flame rating
• Vertical panel mount design facilitates secure board integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment signal routing
• Automotive electronics module connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required single-row configuration and vertical mounting style. Confirm compatibility with the target PCB thickness and ensure the gold plating specification meets the application's conductivity requirements. Check for RoHS compliance status prior to ordering.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical panel mount solution is required. Ensure the 0.100-inch pitch aligns with the mating card edge dimensions. Consider the PPS material properties for thermal stability and the gold contact finish for durability in high-cycle environments compared to tin-plated alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which utilizes polyphenylene sulfide insulation for enhanced thermal performance. The series offers various position counts and mounting styles. This specific model represents a mid-range pin count option within the single-row product line, balancing density and mechanical stability.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 895 series variants with matching 34-position single-row specifications. Verify identical pitch, mounting orientation, and contact plating before cross-referencing with generic industry equivalents.
