895-034-542-208

Edgeboard Connectors Overview

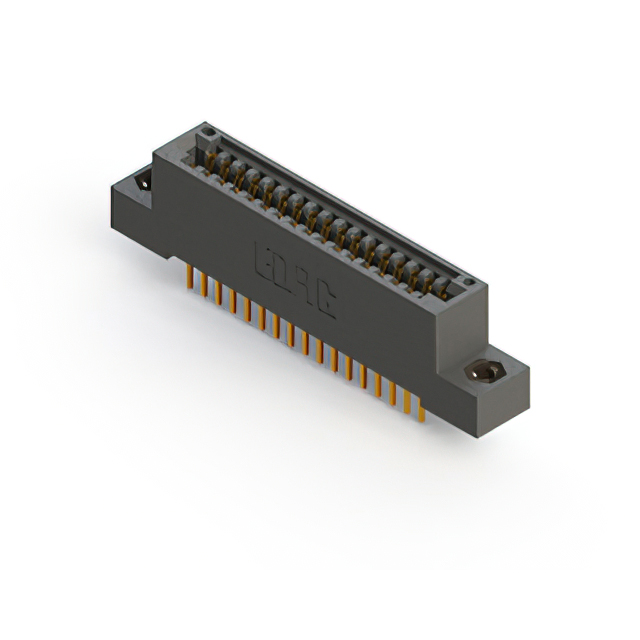

The EDAC Inc. 895-034-542-208 is a dual-edge female card edge connector designed for through-hole mounting. It features 34 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The contacts are made of copper alloy with gold plating and utilize wire wrap termination. The insulator is black polyphenylene sulfide (PPS). Flange features include flush mount, top opening, and threaded inserts compatible with #4-40 UNC screws. The operating temperature range is -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Wire wrap termination method for reliable circuit connection
• Gold-plated copper alloy contacts for corrosion resistance
• Flush mount flange with top opening and threaded inserts

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Consumer electronics assembly
• Medical device internal connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required flange types and termination styles. Confirm that the wire wrap termination matches the intended PCB design constraints. Check RoHS compliance status if restricted substances are a project requirement. Ensure the #4-40 UNC thread specification aligns with the mechanical mounting hardware available in the final assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with wire wrap termination is required. The 0.100-inch pitch suits standard board layouts. The PPS insulation material provides stability within the specified temperature range. Consider the flush mount flange feature for low-profile applications where top opening access is needed. Verify that the 34-position count meets the signal or power distribution requirements of the target circuit design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options. The 895-034-542-208 specifically addresses needs for dual-edge female connections with wire wrap capabilities. It is manufactured by EDAC Inc., a provider of interconnect solutions for industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for alternative part numbers with different position counts or termination styles. No direct substitute part numbers are confirmed in the provided documentation.
