895-036-541-507

Edgeboard Connectors Overview

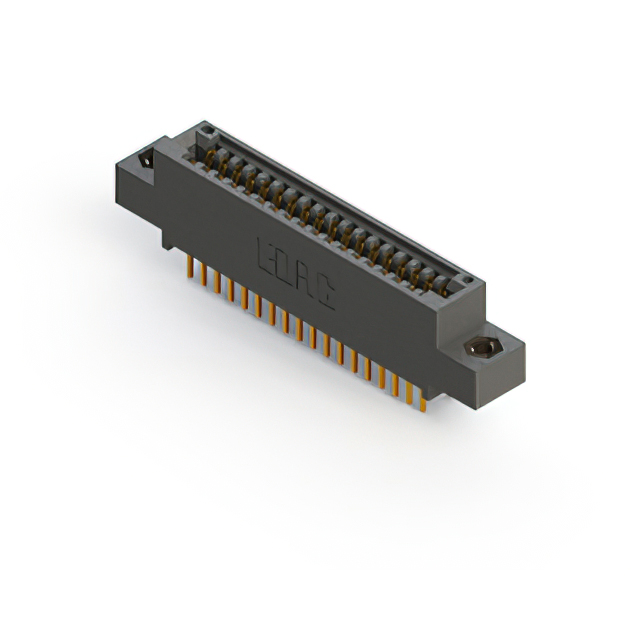

The EDAC Inc. 895-036-541-507 is a dual female card edge connector featuring 36 positions with a 0.100-inch (2.54mm) contact spacing and 0.200-inch (5.08mm) row spacing. Designed for through-hole termination, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes gold-plated copper alloy contacts housed in a black polyphenylene sulfide insulator, ensuring reliable electrical performance within an operating temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-profile insulator body construction
• Gold-plated contact surfaces for corrosion resistance
• Compatible with standard 0.062 inch board thickness

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to ensure correct pin count and termination style. Confirm that the required PCB thickness aligns with the connector's design specifications before procurement. Cross-reference the part number with current RoHS compliance documentation to meet regulatory requirements for your target market.

Edgeboard Connectors Selection Notes

Select this model when a dual-row configuration with 36 contacts is required for vertical panel or board mounting. Ensure the application environment remains within the specified thermal limits. Verify that the mating card dimensions match the connector's acceptance criteria for proper mechanical engagement and signal integrity.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination options, providing flexibility for different interface densities. The 895-036 variant specifically addresses applications requiring a moderate density connection with robust mechanical stability.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with differing pin counts or termination styles. No alternative third-party part numbers are publicly confirmed as functionally equivalent.
