895-038-521-603

Edgeboard Connectors Overview

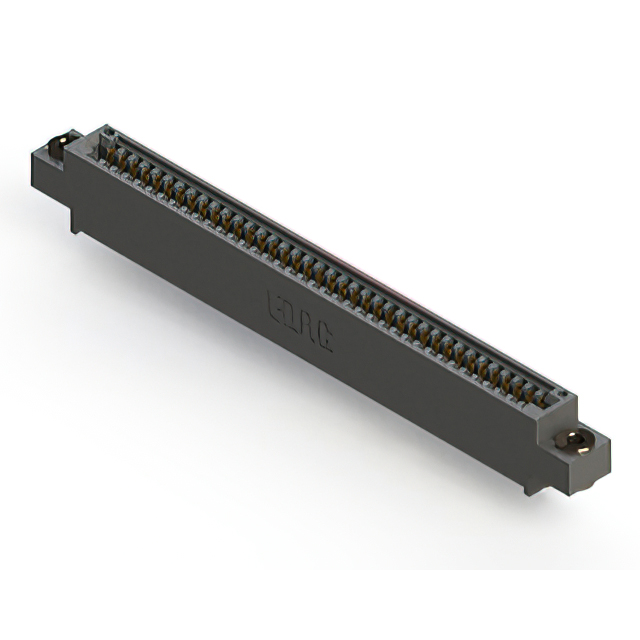

The EDAC Inc. model 895-038-521-603 is a standard single-row card edge connector receptacle designed for vertical panel mount applications. It features 38 positions with a contact spacing of 0.100 inches (2.54 mm) and a row spacing of 0.200 inches (5.08 mm). The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Electrical specifications include a current rating of 3 A, an insulation resistance of 5 GOhms, and gold-plated copper alloy contacts. The insulator body is constructed from black Polyphenylene Sulfide (PPS), supporting an operating temperature range from -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-profile insulator body construction
• Gold-plated copper alloy contacts
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Medical interconnect systems
• Agricultural technology equipment
• Industrial control panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct termination type and plating specifications. Confirm that the required PCB thickness matches the connector's design tolerance of 0.062 inches. Check for any recent Product Change Notifications or obsolescence notices directly from the manufacturer before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a single-row vertical interface is required for 38-position signal routing. Ensure the mating card edge thickness aligns with the 1.57 mm specification. Verify that the environmental conditions fall within the specified -40°C to +125°C operational range and that the PPS housing material meets chemical resistance requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series provides reliable interconnection solutions for various industrial and commercial applications. The specific model utilizes a high-profile design to accommodate standard board thicknesses while maintaining robust mechanical stability in panel-mounted configurations.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Cross-reference pin counts, pitch dimensions, and termination methods to ensure functional compatibility without modifying existing mechanical constraints.
