895-038-542-803

Edgeboard Connectors Overview

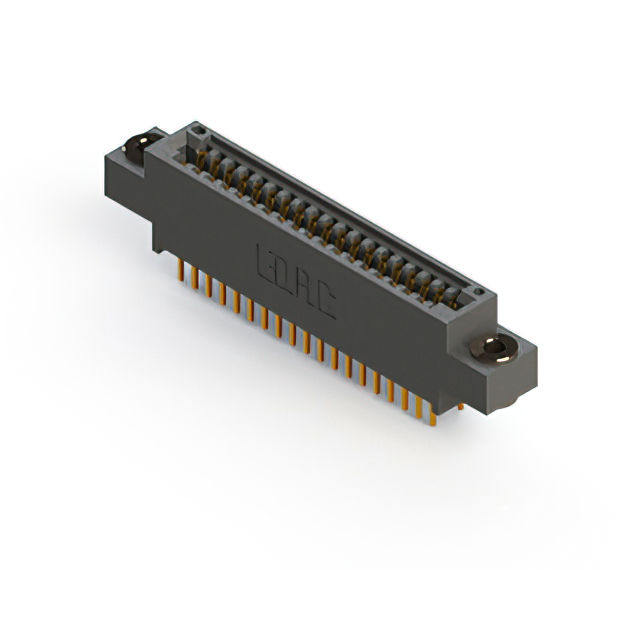

The EDAC Inc. 895-038-542-803 is a standard card edge connector receptacle featuring 38 positions with a 2.54 mm (0.100 inch) pitch. Designed for vertical panel mount installation, it utilizes wire wrap termination and gold-plated copper alloy contacts rated for 3 A current. The housing is constructed from black polyphenylene sulfide (PPS), supporting board thicknesses of 1.57 mm. It operates within a temperature range of -40°C to +125°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle design for secure structural integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire wrap termination provides robust electrical connection stability
• Polyphenylene sulfide (PPS) housing offers high thermal resistance

Edgeboard Connectors Applications

• Computing and storage systems interconnects
• Medical device circuit board connections
• Aerospace and defense electronic assemblies
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number 895-038-542-803 against official EDAC documentation to confirm compatibility. Ensure that the receiving board meets the specified 1.57 mm thickness requirement. Check for RoHS compliance status through the manufacturer's latest datasheet or certification documents before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge connector is required for panel mounting applications. The 2.54 mm pitch and 38-position count define the interface density. Consider the wire wrap termination method if through-board wiring is preferred over surface mount alternatives. Verify that the operating environment falls within the -40°C to +125°C temperature range for optimal performance.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which specializes in standard card edge solutions. The series provides various position counts and termination options to accommodate diverse PCB layout requirements. EDAC has established itself as a provider of interconnect solutions for computing, medical, and industrial sectors since 1966, focusing on quality assurance and global logistics support.

Edgeboard Connectors Replacement Considerations

Consult EDAC official documentation for direct cross-reference part numbers. Verify that any substitute maintains the 2.54 mm pitch, 38-position count, and vertical panel mount form factor. Ensure the replacement supports wire wrap termination and matches the PPS housing material specifications for thermal and mechanical compatibility.
