895-040-541-507

Edgeboard Connectors Overview

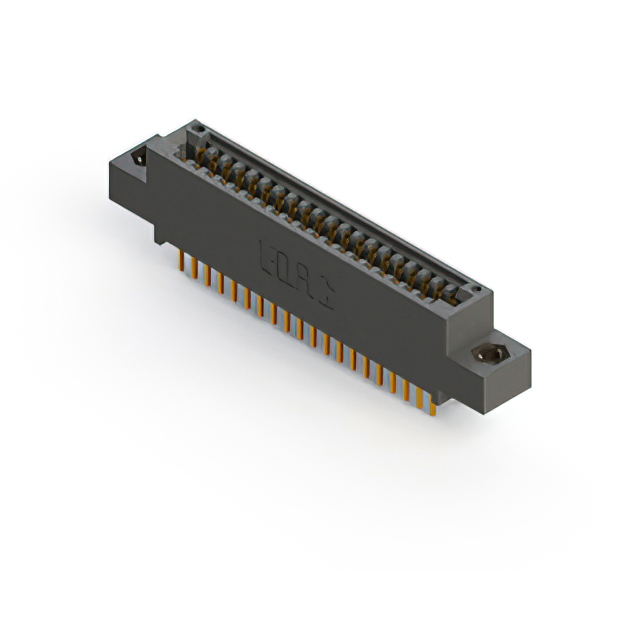

The EDAC Inc. 895-040-541-507 is a dual-edge female card edge connector featuring 40 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide insulator. The component supports board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contacts ensure reliable signal transmission
• High-temperature resistant PPS insulator material

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact termination style and mounting features. Ensure compatibility with target PCB stack-up dimensions and thermal requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-sided connection is required for standard thickness boards. Confirm that the 0.100-inch pitch aligns with the design layout and that the through-hole termination method matches the manufacturing process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series, which provides various card edge connector solutions. The series offers multiple row configurations, termination options, and mounting styles to support diverse electronic interconnection needs across different industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for verified substitute part numbers. Cross-reference pin counts, pitch, and termination types to ensure functional equivalence without modifying the host design.
