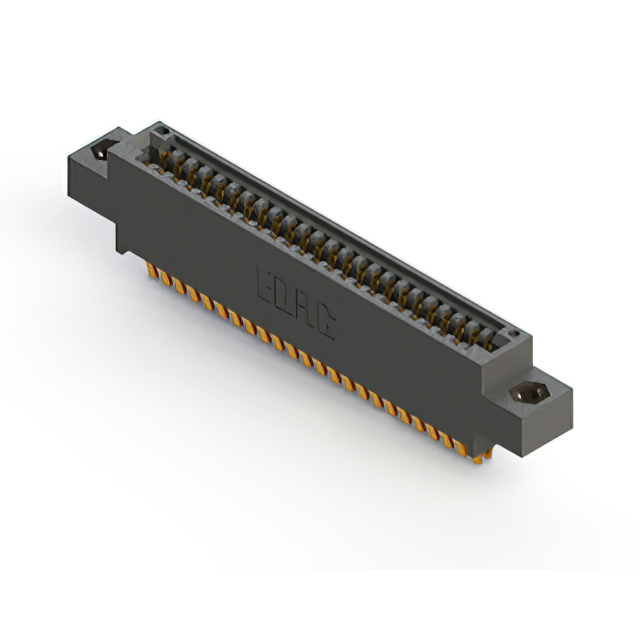

895-048-560-808 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 48POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-048-560-808
- Description：CONN EDGE DUAL FMALE 48POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：24
- Number of Positions：48
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-048-560-808
Edgeboard Connectors Overview
The EDAC Inc. 895-048-560-808 is a dual-edge female card edge connector with 48 positions and a 0.100-inch (2.54mm) pitch. It features gold-plated contacts, a black polyphenylene sulfide (PPS) housing, and right-angle through-hole termination. Designed for panel mounting, it supports board thicknesses of 1.37mm to 1.78mm and operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Dual-edge female configuration with 48 positions
- Gold-plated copper alloy contacts
- Right-angle panel mount installation
- Polyphenylene sulfide insulation material
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Automotive electronics
- Medical devices
- Research and educational institutions
Edgeboard Connectors Procurement Notes
Verify the manufacturer part number against official EDAC documentation to ensure authenticity. Confirm that the component meets RoHS3 compliance standards as specified in the datasheet. Check for any specific environmental certifications required by your application. Ensure the supplier provides valid traceability records for quality assurance purposes.
Edgeboard Connectors Selection Notes
Select this connector when a dual-edge female interface with a 0.100-inch pitch is required. Ensure the mating card thickness falls within the 1.37mm to 1.78mm range. Verify that the right-angle panel mount style aligns with the mechanical design constraints. Confirm compatibility with the operating temperature range of -40°C to +125°C.
Edgeboard Connectors Part Context
This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles. The 895-048-560-808 specifically provides a 48-position dual-edge configuration. It is designed for reliable signal transmission in demanding electronic environments.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC ordering guide for direct substitutes within the 895 series. Verify pin count, pitch, and mounting style compatibility before substitution. Cross-reference specifications with alternative manufacturers if necessary.
