895-049-558-108

Edgeboard Connectors Overview

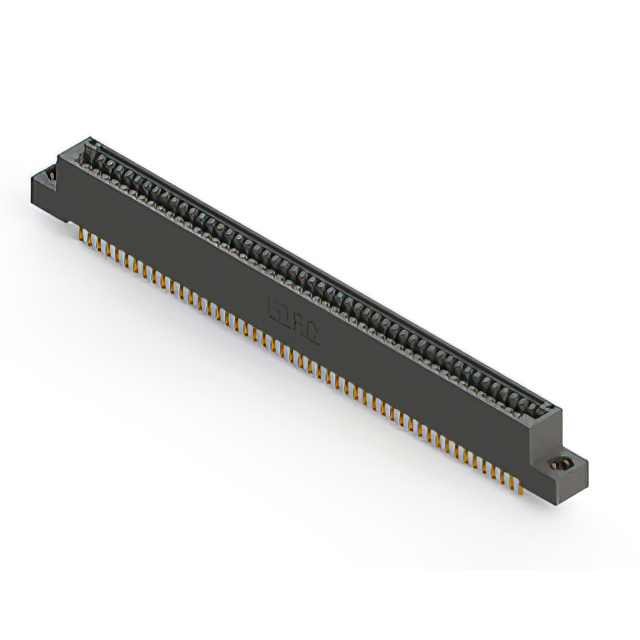

The EDAC Inc. 895-049-558-108 is a single-row card edge connector designed for through-hole mounting. It features 49 positions with a 0.100-inch (2.54mm) pitch and accepts board thicknesses of 1.57mm. The contacts are made of copper alloy with gold plating, rated for 3A current and 5 GOhms insulation resistance. Constructed from Polyphenylene Sulfide (PPS), it operates between -40°C and +125°C. This right-angle receptacle is RoHS3 compliant and suitable for standard edge board applications.

Edgeboard Connectors Feature Summary

• Single-row female configuration with gold-plated copper alloy contacts
• Right-angle panel mount design for space-efficient integration
• Polyphenylene Sulfide (PPS) insulator for thermal stability
• Through-hole solder termination for secure PCB attachment

Edgeboard Connectors Applications

• Standard card edge interconnects
• Industrial control systems
• Communication equipment backplanes
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition, as variations exist within the 895 series. Ensure the target application requires a single-row configuration rather than dual-row alternatives. Confirm that the 1.57mm board thickness specification aligns with your PCB design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle connection is required for boards with a 1.57mm thickness. The 0.100-inch pitch is standard for many legacy and industrial interfaces. Consider the 3A current rating and high insulation resistance for reliable signal integrity in demanding environments compared to lower-rated alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 Series of standard card edge connectors. The series offers various row counts and configurations, including single and dual rows, to support diverse interface requirements. The 895-049 variant specifically addresses applications needing 49 connections in a compact, right-angle form factor.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other 49-position single-row connectors with identical 0.100-inch pitch and right-angle mounting. Verify mechanical dimensions and pinout compatibility carefully. Alternative parts from different manufacturers must match the PPS material and gold plating specifications for equivalent performance.
