895-050-521-408

Edgeboard Connectors Overview

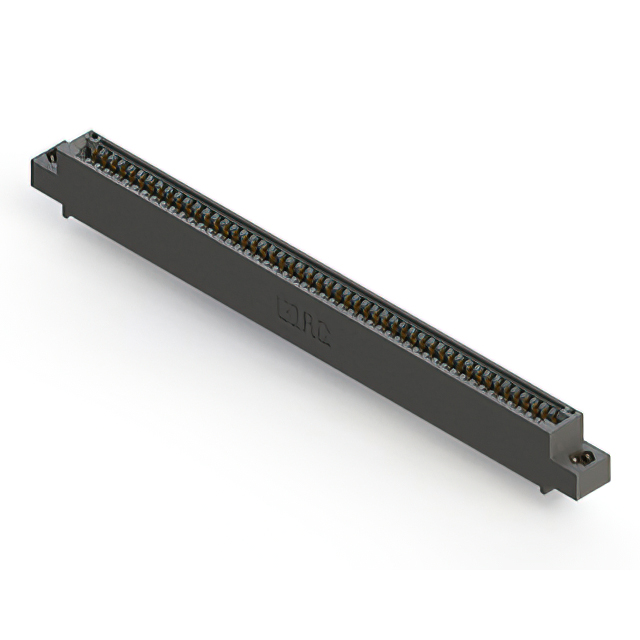

The EDAC Inc. 895-050-521-408 is a standard card edge connector receptacle featuring a .100" (2.54mm) pitch and .200" (5.08mm) row spacing. It provides 50 positions in a single female configuration with gold-plated copper alloy contacts. Designed for panel mount installation, it utilizes a solder pin termination method. The insulator body is constructed from black polyphenylene sulfide (PPS), accommodating printed circuit boards with a nominal thickness of .062" (1.57mm). This component belongs to the 895 series.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration designed for non-specified card types
• High-profile insulator body constructed from durable PPS material
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount orientation with vertical installation style

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation panels
• Automotive electronic modules needing secure mounting

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes to ensure correct termination type and plating specifications. Confirm that the target PCB thickness aligns with the .062" (1.57mm) nominal requirement for proper insertion. Check RoHS compliance status against specific project environmental regulations before finalizing orders.

Edgeboard Connectors Selection Notes

Select this model when a single-row interface with 50 positions is required. Ensure the application supports panel mounting rather than board stacking. Verify that the .100" pitch matches the mating card edge dimensions. Consider the high-profile body design if vertical clearance allows for easier insertion during assembly processes.

Edgeboard Connectors Part Context

This component is part of the EDAC 895 series, which focuses on standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs. The 895 series is characterized by its use of PPS insulators and gold-plated contacts for durability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 895 series variants for different position counts or termination styles. Verify mechanical compatibility with existing panel cutouts and mating cards before substituting.
