895-056-555-502

Edgeboard Connectors Overview

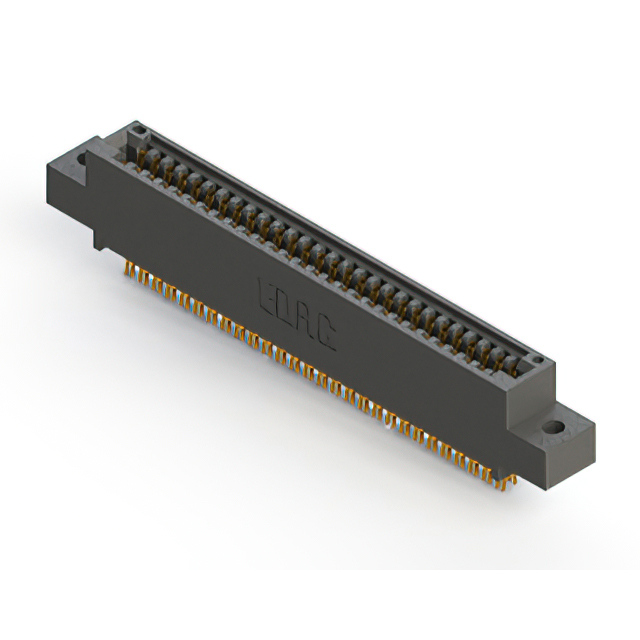

The EDAC Inc. 895-056-555-502 is a dual-edge female card edge connector designed for through-hole mounting. It features 56 positions with a 0.100-inch (2.54mm) contact spacing and a 0.200-inch (5.08mm) row spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Contacts are made of copper alloy with gold plating, housed in a black high-profile insulator body constructed from polyphenylene sulfide (PPS).

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• High-profile PPS insulator body provides structural stability
• Through-hole termination supports standard soldering processes

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target PCB thickness and mounting requirements. Ensure that the gold plating specification meets the application's electrical performance needs. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 56 positions is required. The 0.100-inch pitch suits general-purpose digital and analog signals. Consider the high-profile design for applications needing enhanced mechanical retention or clearance above the board surface.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which offers various positioning options and termination styles. The series is characterized by its versatility in handling different board thicknesses and providing reliable connections in demanding environments. The 895-056 variant specifically addresses higher density needs within the standard pitch family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for direct substitutes. Verify that any alternative maintains identical pin count, pitch, and mounting style to ensure mechanical fit.
